STGCR/L-SH-TB : Screw type high pressure coolant holders with 91° approach angle & 60° TC.T positive inserts for Swiss type automatic lathes

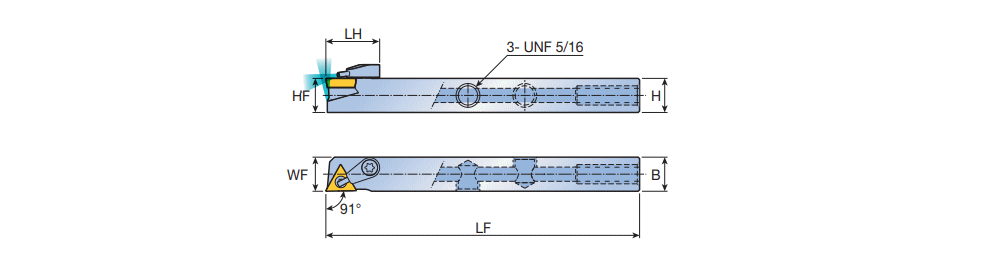

Right-hand shown
Coolant pressure: recommended 70 bar, max. up to 140 bar

Designation	HF	H	B	LF	LH	WF	IC	t	Kr	KAPR	CL	Tool typ	HAND	ClssID	MIID		IIC	GICAT	GIREM	giic	GICODE
STGCR 1212 K11-SH-TB	12.0	12.0	12.0	125.00	20.0	12.00	6.35~	3.18~	0~	91.0~	SCREW-SH-TB ~	SQUARE ~	R ~	71E01A0E85121 ~	TCET 110302 R-GF	O ~	IS$$93255475078505 ~	6165914		0
STGCR 1616 K11-SH-TB	16.0	16.0	16.0	125.00	20.0	16.00	6.35~	3.18~	0~	91.0~	SCREW-SH-TB ~	SQUARE ~	R ~	71E01A0E85121 ~	TCET 110302 R-GF	O ~	IS$$93255475078505 ~	6165915		0
