Turning
Main Application

SVJBR/L-SH-TB : Screw type high pressure coolant holders with 93° approach angle & 35° VB.T positive inserts for Swiss type automatic lathes

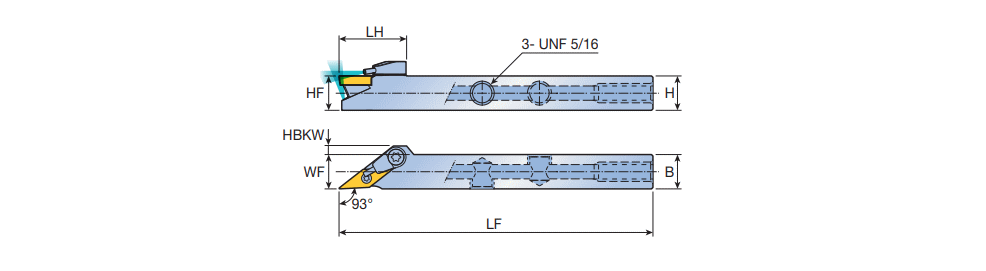

Right-hand shown
Coolant pressure: recommended 70 bar, max. up to 140 bar

Right-hand shown
Coolant pressure: recommended 70 bar, max. up to 140 bar

 COOLANT_COOLBURST
  DesignationHF H B LF LH WF HBKW IC t Kr KAPR CL Tool typ HAND ClssID MIID  IIC IIC_2 IIC_3 GICATGIREMgiicGICODE
  SVJBL 1212 K11-SH-TB 12.012.012.0125.0023.612.003.06.35~3.18~44~93.0~SCREW-SH-TB ~SQUARE ~L ~71E01A0E85121 ~VBET 110302 L-GF O ~IS$$1106456328248117 ~IS$$768192322462738 ~IS$$791704338878032 ~6165916 0
  SVJBR 1212 K11-SH-TB 12.012.012.0125.0023.612.003.06.35~3.18~44~93.0~SCREW-SH-TB ~SQUARE ~R ~71E01A0E85121 ~VBET 110302 R-GF O ~IS$$1106456328248117 ~IS$$768192322462738 ~IS$$827402735590531 ~6165918 0
  SVJBL 1616 K11-SH-TB 16.016.016.0125.0023.616.00-6.35~3.18~44~93.0~SCREW-SH-TB ~SQUARE ~L ~71E01A0E85121 ~VBET 110302 L-GF O ~IS$$1106456328248117 ~IS$$768192322462738 ~IS$$791704338878032 ~6165917 0
  SVJBR 1616 K11-SH-TB 16.016.016.0125.0023.616.00-6.35~3.18~44~93.0~SCREW-SH-TB ~SQUARE ~R ~71E01A0E85121 ~VBET 110302 R-GF O ~IS$$1106456328248117 ~IS$$768192322462738 ~IS$$827402735590531 ~6165919 0
