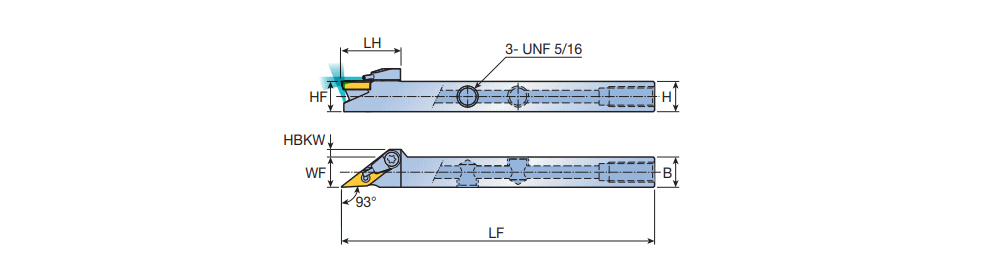

SVJCR/L-SH-TB : Screw type high pressure coolant holders with 93° approach angle & 35° VC.T positive inserts for Swiss type automatic lathes
Right-hand shown
Coolant pressure: recommended 70 bar, max. up to 140 bar

Right-hand shown
Coolant pressure: recommended 70 bar, max. up to 140 bar

 COOLANT_COOLBURST
  DesignationHF H B LF LH WF HBKW IC t Kr KAPR CL Tool typ HAND ClssID MIID  IIC GICATGIREMgiicGICODE
  SVJCL 1212 K11-SH-TB 12.012.012.0125.0023.612.003.06.35~3.18~44~93.0~SCREW-SH-TB ~SQUARE ~L ~71E01A0E85121 ~VCGT 110302 SA O ~IS$$527365847304348 ~6177292 0
  SVJCR 1212 K11-SH-TB 12.012.012.0125.0023.612.003.06.35~3.18~44~93.0~SCREW-SH-TB ~SQUARE ~R ~71E01A0E85121 ~VCGT 110302 SA O ~IS$$527365847304348 ~6177290 0
  SVJCL 1616 K11-SH-TB 16.016.016.0125.0023.616.00-6.35~3.18~44~93.0~SCREW-SH-TB ~SQUARE ~L ~71E01A0E85121 ~VCGT 110302 SA O ~IS$$527365847304348 ~6177293 0
  SVJCR 1616 K11-SH-TB 16.016.016.0125.0023.616.00-6.35~3.18~44~93.0~SCREW-SH-TB ~SQUARE ~R ~71E01A0E85121 ~VCGT 110302 SA O ~IS$$527365847304348 ~6177291 0
  SVJCL 2020 K11-SH-TB 20.020.020.0125.0023.620.00-6.35~3.18~44~93.0~SCREW-SH-TB ~SQUARE ~L ~71E01A0E85121 ~VCGT 110302 SA O ~IS$$527365847304348 ~6319025 0
  SVJCR 2020 K11-SH-TB 20.020.020.0125.0023.620.00-6.35~3.18~44~93.0~SCREW-SH-TB ~SQUARE ~R ~71E01A0E85121 ~VCGT 110302 SA O ~IS$$527365847304348 ~6319024 0
