TaeguTec Cutting Tools - Metal Working Tools - Turning -

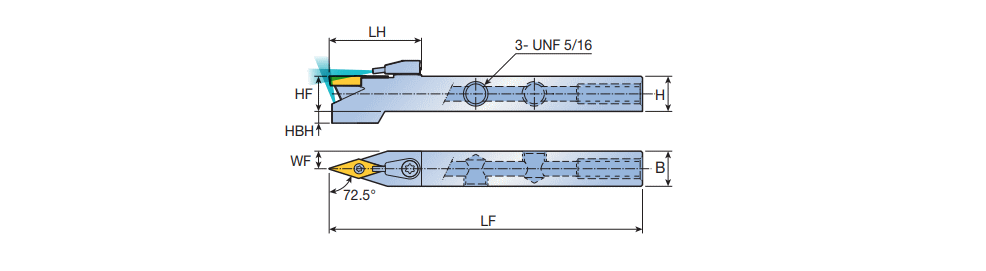

SVVBN-SH-TB : Screw type high pressure coolant holders with 72.5° approach angle & 35° VB.T positive inserts for Swiss type automatic lathes

Coolant pressure: recommended 70 bar, max. up to 140 bar

Designation	HF	H	B	LF	LH	WF	HBH	IC	t	Kr	KAPR	CL	Tool typ	HAND	ClssID	MIID		IIC	IIC_2	IIC_3	IIC_4	GICAT	GIREM	giic	GICODE
SVVBN 1212 K11-SH-TB	12.0	12.0	12.0	125.00	31.5	6.00	2.0	6.35~	3.18~	70~	72.5~	SCREW-SH-TB ~	SQUARE ~	N ~	71E01A0E85121 ~	VBET 110302 R-GF	O ~	IS$$1106456328248117 ~	IS$$768192322462738 ~	IS$$791704338878032 ~	IS$$827402735590531 ~	6165920		0
SVVBN 1616 K11-SH-TB	16.0	16.0	16.0	125.00	31.5	8.00	-	6.35~	3.18~	70~	72.5~	SCREW-SH-TB ~	SQUARE ~	N ~	71E01A0E85121 ~	VBET 110302 R-GF	O ~	IS$$1106456328248117 ~	IS$$768192322462738 ~	IS$$791704338878032 ~	IS$$827402735590531 ~	6165921		0
