TaeguTec Cutting Tools - Metal Working Tools - Tooling System -

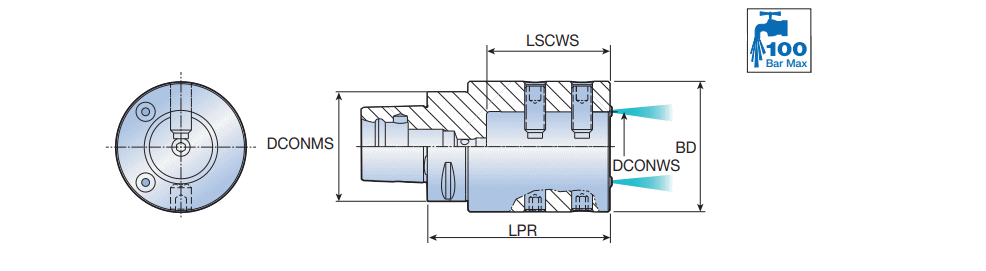

C...ABB : Adapters with C-ADAPTER exchangeable shanks for boring bars with reduction sleeves.

Designation	DCONMS	DCONWS	BD	LPR	LSCWS	ClssID	LTA	GICAT
C4 ABB 25-60	40	25.00	63.00	100.00	60.0	71EAD3871D313 ~	100.00~	6150577
C5 ABB-25-60	50	25.00	63.00	100.00	60.0	71EAD3871D313 ~	100.00~	6116477
C6 ABB-25-60	63	25.00	63.00	100.00	60.0	71EAD3871D313 ~	100.00~	4656401
C6 ABB-40-70	63	40.00	75.00	105.00	71.0	71EAD3871D313 ~	105.00~	4656402
C8 ABB 25-60	80	25.00	63.00	100.00	60.0	71EAD3871D313 ~	100.00~	6150578
C8 ABB 40-72	80	40.00	75.00	105.00	71.0	71EAD3871D313 ~	105.00~	6150579
