TaeguTec Cutting Tools - Metal Working Tools - Tooling System -

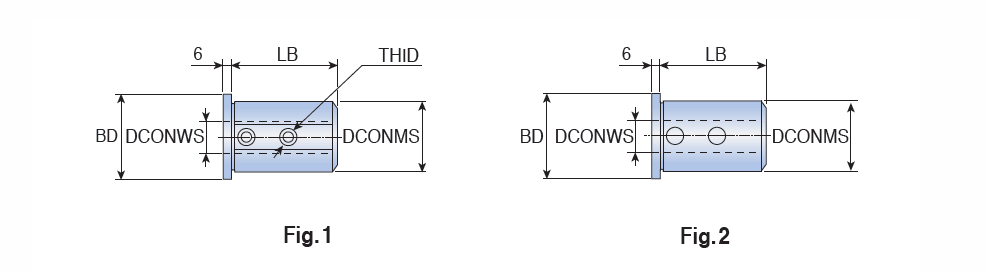

SC...T...A/B : Reduction sleeves for bars, used in holders with exchangeable adaptation.

Designation	DCONMS	DCONWS	BD	LB	THID	Fig	ClssID	LTA	GICAT
SC 25T6A	25	6.00	31.00	56.00	M6	1	71EAD3871D313 ~	6.00~	6150594
SC 25T8A	25	8.00	31.00	56.00	M8	1	71EAD3871D313 ~	6.00~	6150595
SC 25T10A	25	10.00	31.00	56.00	M8	1	71EAD3871D313 ~	6.00~	6150596
SC 25T12A	25	12.00	31.00	56.00	M8	1	71EAD3871D313 ~	6.00~	6150597
SC 25T16B	25	16.00	31.00	56.00	-	2	71EAD3871D313 ~	6.00~	6150598
SC 25T20B	25	20.00	31.00	56.00	-	2	71EAD3871D313 ~	6.00~	6150599
SC 40T6A	40	6.00	46.00	60.00	M6	1	71EAD3871D313 ~	6.00~	6150600
SC 40T8A	40	8.00	46.00	60.00	M8	1	71EAD3871D313 ~	6.00~	6150601
SC 40T10A	40	10.00	46.00	60.00	M8	1	71EAD3871D313 ~	6.00~	6150602
SC 40T12A	40	12.00	46.00	60.00	M8	1	71EAD3871D313 ~	6.00~	6150603
SC 40T16B	40	16.00	46.00	60.00	-	2	71EAD3871D313 ~	6.00~	6150604
SC 40T20B	40	20.00	46.00	60.00	-	2	71EAD3871D313 ~	6.00~	6150605
SC 40T25B	40	25.00	46.00	60.00	-	2	71EAD3871D313 ~	6.00~	6150606
SC 40T32B	40	32.00	46.00	60.00	-	2	71EAD3871D313 ~	6.00~	6150607
SC 50T6A	50	6.00	56.00	70.00	M6	1	71EAD3871D313 ~	6.00~	6150608
SC 50T8A	50	8.00	56.00	70.00	M8	1	71EAD3871D313 ~	6.00~	6150609
SC 50T10A	50	10.00	56.00	70.00	M8	1	71EAD3871D313 ~	6.00~	6150611
SC 50T12A	50	12.00	56.00	70.00	M8	1	71EAD3871D313 ~	6.00~	6150612
SC 50T16B	50	16.00	56.00	80.00	-	2	71EAD3871D313 ~	6.00~	6150613
SC 50T20B	50	20.00	56.00	80.00	-	2	71EAD3871D313 ~	6.00~	6150615
SC 50T25B	50	25.00	56.00	80.00	-	2	71EAD3871D313 ~	6.00~	6150616
SC 50T32B	50	32.00	56.00	80.00	-	2	71EAD3871D313 ~	6.00~	6150618
