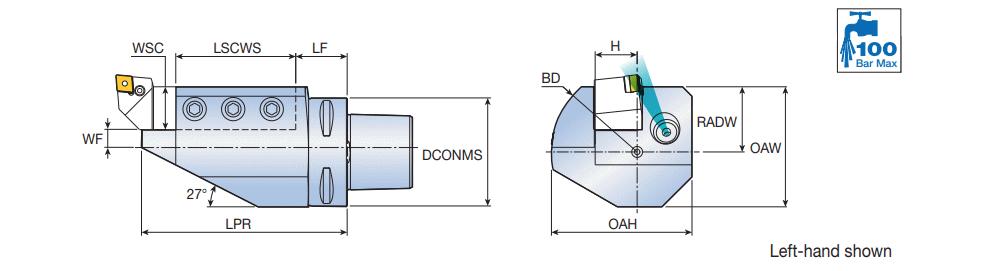

C...ASHR/L : Holders with C-ADAPTER exchangeable shanks for external square-shank tools.

Designation	DCONMS	LPR	LSCWS	LF	WF	H	WSC	OAH	RADW	OAW	BD	ClssID	h2	H5	LTA	GICAT
C4 ASHL 16-1	40	104.00	70.00	34.00	16.00	16	16.000	50.0	23.00	43.50	60.00	71EAD3871D313 ~	20.00~	20.50~	99.00~	6150640
C4 ASHR 16-1	40	104.00	70.00	34.00	16.00	16	16.000	50.0	23.00	43.50	60.00	71EAD3871D313 ~	20.00~	20.50~	99.00~	6150639
C5 ASHL 20-1	50	98.00	63.50	24.50	10.00	20	20.000	78.0	30.00	59.00	90.00	71EAD3871D313 ~	33.00~	29.00~	88.00~	6150642
C5 ASHR 20-1	50	98.00	63.50	24.50	10.00	20	20.000	78.0	30.00	59.00	90.00	71EAD3871D313 ~	33.00~	29.00~	88.00~	6121416
C6 ASHL 20-1	63	100.00	63.50	36.50	20.00	20	20.000	78.0	30.00	59.00	90.00	71EAD3871D313 ~	33.00~	29.00~	90.00~	6150645
C6 ASHR 20-1	63	100.00	63.50	36.50	20.00	20	20.000	78.0	30.00	59.00	90.00	71EAD3871D313 ~	33.00~	29.00~	90.00~	6150644
C6 ASHL 25-1	63	120.00	70.00	30.00	13.00	25	25.000	82.0	38.00	70.00	100.00	71EAD3871D313 ~	33.00~	29.00~	100.00~	4656461
C6 ASHR 25-1	63	120.00	70.00	30.00	13.00	25	25.000	82.0	38.00	70.00	100.00	71EAD3871D313 ~	32.00~	32.00~	100.00~	4656460
C8 ASHL 32-1	80	140.00	95.00	35.00	8.00	32	32.000	87.0	40.00	80.00	110.00	71EAD3871D313 ~	32.00~	40.00~	130.00~	6150648
C8 ASHR 32-1	80	140.00	95.00	35.00	8.00	32	32.000	87.0	40.00	80.00	110.00	71EAD3871D313 ~	32.00~	40.00~	130.00~	6150646
