TaeguTec Cutting Tools - Metal Working Tools - Tooling System -

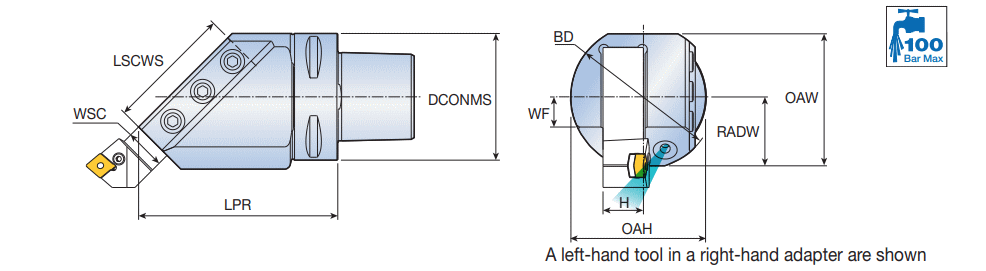

C...ASHR/L-45 : Holders with C-ADAPTER shanks carrying square shank tools for 45 mounting on turn-mill machines.

Designation	DCONMS	H	WSC	LSCWS	LPR	OAH	RADW	OAW	WF	BD			HAND	Machine	S. Std.	e	ClssID	h2	H5	LTA	GICAT
C5 ASHL 20-45	50	20	20.000	-	127.00	62.0	36.00	67.50	15.00	72.00	0.00~	~	~	~	~	~	71EAD3871D313 ~	26.00~	31.50~	89.93~	6150664
C5 ASHR 20-45	50	20	20.000	-	127.00	62.0	36.00	67.50	15.00	72.00	0.00~	~	~	~	~	~	71EAD3871D313 ~	26.00~	31.50~	89.93~	6150663
C6 ASHL 20-45	63	20	20.000	70.00	102.00	62.0	41.60	67.50	15.00	72.00	0.00~	~	~	~	~	~	71EAD3871D313 ~	33.00~	38.00~	91.93~	6150666
C6 ASHL 25-45	63	20	20.000	70.00	102.00	62.0	41.60	67.50	15.00	72.00	0.00~	~	~	~	~	~	71EAD3871D313 ~	33.00~	38.00~	93.16~	6150668
C6 ASHR 20-45	63	25	25.000	70.00	102.00	83.0	41.60	79.60	15.00	100.00	0.00~	~	~	~	~	~	71EAD3871D313 ~	33.00~	38.00~	91.93~	6150665
C6 ASHR 25-45	63	25	25.000	70.00	102.00	83.0	41.60	79.60	15.00	100.00	0.00~	~	~	~	~	~	71EAD3871D313 ~	33.00~	38.00~	93.16~	6150667
C8 ASHL 32-45	80	32	32.000	100.00	140.00	110.0	50.00	110.00	17.00	140.00	0.00~	~	~	~	~	~	71EAD3871D313 ~	40.00~	60.00~	128.69~	6150670
C8 ASHR 32-45	80	32	32.000	100.00	140.00	110.0	50.00	110.00	17.00	140.00	0.00~	~	~	~	~	~	71EAD3871D313 ~	40.00~	60.00~	128.69~	6150669
