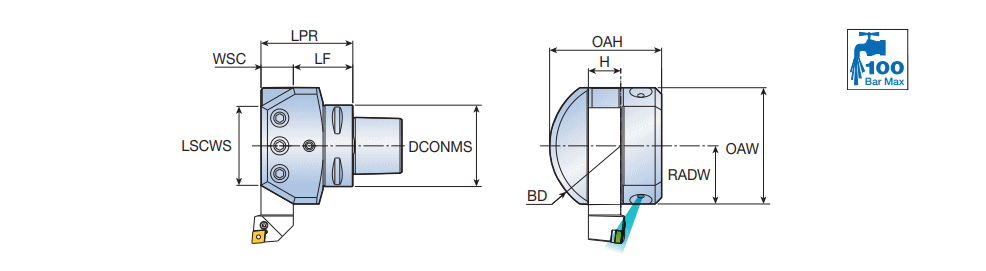

C...ASHA : Perpendicular holders with C-ADAPTER shanks for external square-shank tools.

Designation	DCONMS	H	WSC	LPR	LSCWS	LF	RADW	OAW	OAH	BD			HAND	Machine	ClssID	H5	h2	LTA	GICAT
C5 ASHA 20	50	20	20.000	58.00	46.00	38.00	38.00	76.00	76.5	90.00	0.00~	~	~	~	71EAD3871D313 ~	38.00~	31.50~	48.00~	6150671
C6 ASHA 20	63	20	20.000	60.00	46.00	40.00	38.00	76.00	76.5	90.00	0.00~	~	~	~	71EAD3871D313 ~	38.00~	31.50~	50.00~	6150672
C6 ASHA 25	63	25	25.000	71.00	61.00	46.00	45.00	90.00	86.6	110.00	0.00~	~	~	~	71EAD3871D313 ~	45.00~	31.60~	58.50~	6150673
C8 ASHA 32	80	32	32.000	85.00	80.00	53.00	55.00	100.00	95.0	142.00	0.00~	~	~	~	71EAD3871D313 ~	55.00~	30.00~	69.00~	6150674
