TaeguTec Cutting Tools - Metal Working Tools - Turning -

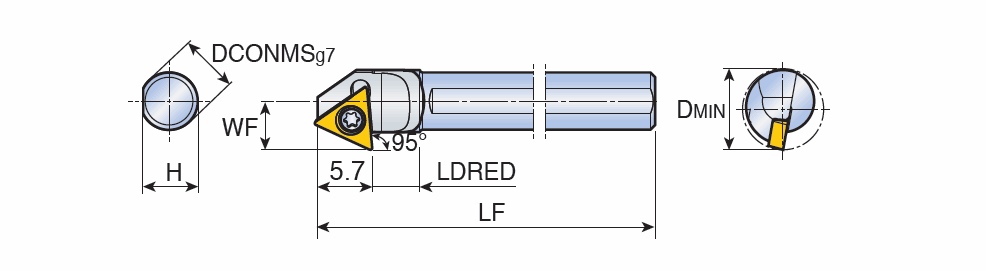

C-STZBR/L : Screw type Carbide shank boring bars for positive Triangular inserts of 5° clearance angle with 95° approach angle

Right-hand shown

Designation	DCONMS	H	LF	LDRED	WF	DMIN	IC	t	Kr	KAPR	CL	Tool typ	HAND	ClssID	MIID	IIC	GICAT	GIREM	giic	GICODE
C06J STZBL 06-D085	6.00	5.5	110.00	5.0	5.10	8.50	3.97~	1.59~	0~	95.0~	SCREW ~	BORING BAR ~	L ~	71E01A0E9CBA9 ~	TBGT 060102 L-FF	IS$$48185898134094 ~	6149295		0
C06J STZBR 06-D085	6.00	5.5	110.00	5.0	5.10	8.50	3.97~	1.59~	0~	95.0~	SCREW ~	BORING BAR ~	R ~	71E01A0E9CBA9 ~	TBGT 060102 R-FF	IS$$48185370558833 ~	6149143		0
