Turning
Main Application

S-SVPBR/L : Screw type boring bars for positive 35° Rhombic inserts of 5° clearance angle with 117.5° approach angle

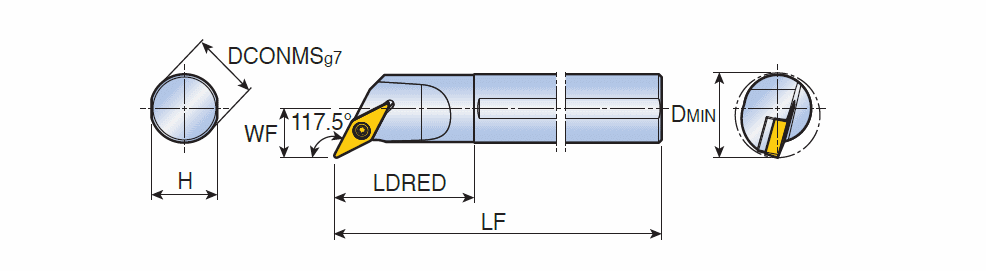

Right-hand shown

Right-hand shown

  DesignationDCONMS H LF LDRED WF DMIN IC t Kr KAPR CL Tool typ HAND ClssID MIID IIC IIC_2 IIC_3 GICATGIREMgiicGICODE
  S16Q SVPBL 11-D22 16.0015.0180.0035.013.5022.006.35~3.18~25~117.0~SCREW ~BORING BAR ~L ~71E01A0E9CBA9 ~VBET 110302 R-GF IS$$1106456328248117 ~IS$$768192322462738 ~IS$$827402735590531 ~6149300 0
  S16Q SVPBR 11-D22 16.0015.0180.0035.013.5022.006.35~3.18~25~117.0~SCREW ~BORING BAR ~R ~71E01A0E9CBA9 ~VBET 110302 L-GF IS$$1106456328248117 ~IS$$768192322462738 ~IS$$791704338878032 ~6149148 0
  S20R SVPBL 11-D26 20.0018.0200.0041.015.5026.006.35~3.18~25~117.0~SCREW ~BORING BAR ~L ~71E01A0E9CBA9 ~VBET 110302 R-GF IS$$1106456328248117 ~IS$$768192322462738 ~IS$$827402735590531 ~6149301 0
  S20R SVPBR 11-D26 20.0018.0200.0041.015.5026.006.35~3.18~25~117.0~SCREW ~BORING BAR ~R ~71E01A0E9CBA9 ~VBET 110302 L-GF IS$$1106456328248117 ~IS$$768192322462738 ~IS$$791704338878032 ~6149149 0
  S25S SVPBL 16 25.0023.0250.0051.018.0031.009.52~4.76~25~117.0~SCREW ~BORING BAR ~L ~71E01A0E9CBA9 ~VBMT 160408 MT IS$$884209950608906 ~IS$$974204253037744 ~ ~6149304 0
  S25S SVPBR 16 25.0023.0250.0051.018.0031.009.52~4.76~25~117.0~SCREW ~BORING BAR ~R ~71E01A0E9CBA9 ~VBMT 160408 MT IS$$884209950608906 ~IS$$974204253037744 ~ ~6149152 0
  S32S SVPBL 16 32.0030.0250.0054.023.0040.009.52~4.76~25~117.0~SCREW ~BORING BAR ~L ~71E01A0E9CBA9 ~VBMT 160408 MT IS$$884209950608906 ~IS$$974204253037744 ~ ~6149305 0
  S32S SVPBR 16 32.0030.0250.0054.023.0040.009.52~4.76~25~117.0~SCREW ~BORING BAR ~R ~71E01A0E9CBA9 ~VBMT 160408 MT IS$$884209950608906 ~IS$$974204253037744 ~ ~6149153 0
