TaeguTec Cutting Tools - Metal Working Tools - Parting & Grooving -

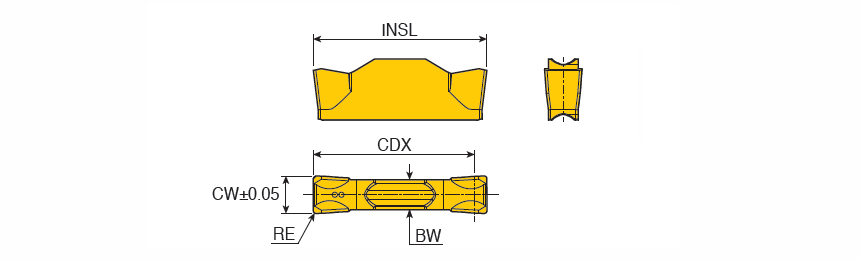

RDC : Double-ended C-type inserts for general machining of parting on small dia. solid bar and shallow grooving with strong cutting edge

Designation	SSC	CW	RE	BW	INSL	CDX	PSIR	CWTOL	SC	R	fg (min)	fg (max)	CB1	W	W+-toler	ClssID	CBMD	GRDMFG	IIC	GICAT	giic	Tough ‹————› Hard Grade & Vc Click on grade for cutting speed value
RDC 2	2	2.00	0.20	1.70	14.00	13.00	-~	0.050~	L ~	0.000~	0.05	0.18	~	2.00~	0.05~	71DDA089C8D1E ~	C ~	K10 ~	IS$$689252594363100 ~	6243692	4	TT8020 TT7220 TT9080 K10
RDC 3	3	3.00	0.20	2.40	14.00	13.00	-~	0.050~	L ~	0.000~	0.07	0.25	~	3.00~	0.05~	71DDA089C8D1E ~	C ~	K10 ~	IS$$680695653612351 ~	6243693	4	TT8020 TT7220 TT9080 K10
RDC 4	4	4.00	0.30	3.00	14.00	13.00	-~	0.050~	L ~	0.000~	0.08	0.30	~	4.00~	0.05~	71DDA089C8D1E ~	C ~	K10 ~	IS$$384245525932128 ~	6243694	4	TT8020 TT7220 TT9080 K10
RDC 5	5	5.00	0.30	4.00	17.50	17.00	-~	0.050~	L ~	0.000~	0.09	0.35	~	5.00~	0.05~	71DDA089C8D1E ~	C ~	K10 ~	IS$$311838940154613 ~	6243695	4	TT8020 TT7220 TT9080 K10
