TaeguTec Cutting Tools - Metal Working Tools - Parting & Grooving -

TSA (PCD, Full radius) : Single-ended PCD inserts for aluminum wheels machining

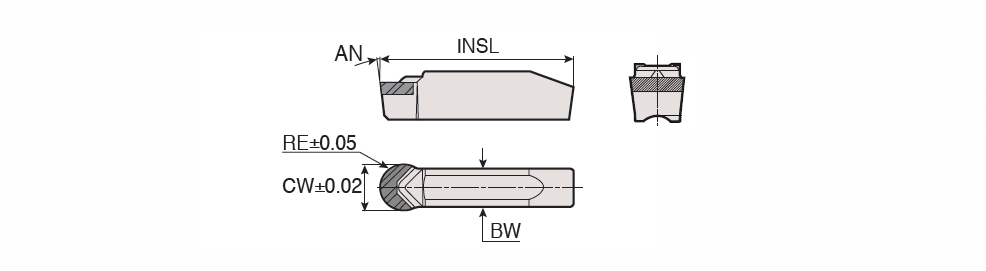

Designation	SSC	CW	RE	BW	INSL	h	AN	S1	SC	R	ft (min)	ft (max)	ap (min)	ap (max)	fg (min)	fg (max)	CB1	W	W+-toler	ClssID	CEDC	COATP	CBMD	GRDMFG	IIC	GICAT	GIREM	giic	GICODE	Tough ‹————› Hard Grade & Vc Click on grade for cutting speed value
TSA 6.00-3.00	6	6.00	3.00	5.0	25.00	5.2~	7.0	6.00~	L ~	0.050~	0.26	0.72	0.00	3.00	0.13	0.36	P4 ~	6.00~	0.02~	71DDA089C8D1E ~	1~	PCD ~	A ~	TD1020~	IS$$362513183973200 ~	5400389		1		TD1020
TSA 8.00-4.00	8	8.00	4.00	6.0	30.00	6.4~	10.0	8.00~	L ~	0.050~	0.24	0.67	0.00	4.00	0.14	0.38	P4 ~	8.00~	0.02~	71DDA089C8D1E ~	1~	PCD ~	A ~	TD1020~	IS$$268545504251968 ~	5403617		2		TD810 TD1020
