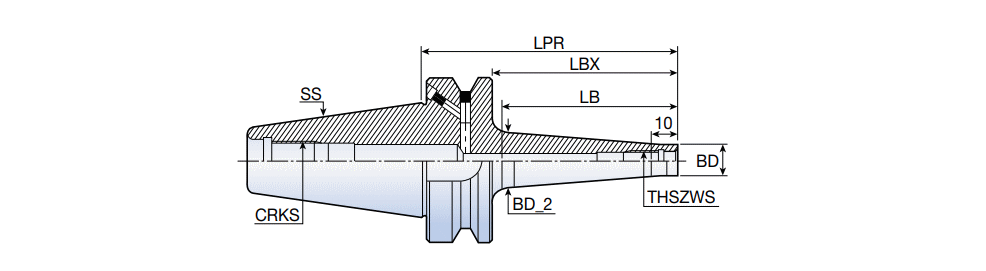

BT-ODP : T-FLEXTEC threaded adaptation tools with BT MAS-403 form ADB taper shanks

Designation	SS	THSZWS	BD	BD_2	LPR	LBX	LB	CRKS		S5	ClssID	LTA	CCTWS	CCFWS	LS	GICAT	GIREM
BT40 ODP 6X106	40	M06	9.80	23.00	106.00	79.0	70.00	M16	1.08	6 ~	71EAD3871D313 ~	106.00~	SAI ~	02 ~	65.4~	4651317
BT40 ODP 6X66	40	M06	9.80	13.00	66.00	39.0	30.00	M16	0.98	6 ~	71EAD3871D313 ~	66.00~	SAI ~	02 ~	65.4~	4651316
BT40 ODP 8X66	40	M08	13.00	15.00	66.00	30.0	30.00	M16	0.99	8 ~	71EAD3871D313 ~	66.00~	SAI ~	02 ~	65.4~	4651318
BT40 ODP 10X106	40	M10	18.00	28.00	106.00	79.0	70.00	M16	1.80	10 ~	71EAD3871D313 ~	106.00~	SAI ~	02 ~	65.4~	4651321
BT40 ODP 10X66	40	M10	18.00	20.00	66.00	30.0	30.00	M16	1.03	10 ~	71EAD3871D313 ~	66.00~	SAI ~	02 ~	65.4~	4651320
BT40 ODP 12X106	40	M12	21.00	31.00	106.00	79.0	70.00	M16	1.23	12 ~	71EAD3871D313 ~	106.00~	SAI ~	02 ~	65.4~	4651323
BT40 ODP 12X66	40	M12	21.00	24.00	66.00	39.0	30.00	M16	1.05	12 ~	71EAD3871D313 ~	66.00~	SAI ~	02 ~	65.4~	4651322
BT40 ODP 16X106	40	M16	29.00	34.00	106.00	79.0	70.00	M16	1.32	16 ~	71EAD3871D313 ~	106.00~	SAI ~	02 ~	65.4~	4651325
BT40 ODP 16X66	40	M16	29.00	28.00	66.00	39.0	35.00	M16	1.06	16 ~	71EAD3871D313 ~	66.00~	SAI ~	02 ~	65.4~	4651324
BT50 ODP 12X 94	50	M12	23.00	30.00	94.00	56.0	50.00	M24	3.85	12.00000 ~	71EAD3871D313 ~	94.00~	SAI ~	02 ~	101.8~	4654635	Balance to G6.3 at 12,000RPM
BT50 ODP 12X144	50	M12	23.00	40.00	144.00	106.0	100.00	M24	4.25	12.00000 ~	71EAD3871D313 ~	144.00~	SAI ~	02 ~	101.8~	4654636	Balance to G6.3 at 12,000RPM
BT50 ODP 12X194	50	M12	23.00	40.00	194.00	156.0	150.00	M24	4.57	12.00000 ~	71EAD3871D313 ~	194.00~	SAI ~	02 ~	101.8~	4654637	Balance to G6.3 at 12,000RPM
BT50 ODP 16X 94	50	M16	29.00	34.00	94.00	56.0	50.00	M24	3.75	16.00000 ~	71EAD3871D313 ~	94.00~	SAI ~	02 ~	101.8~	4654639	Balance to G6.3 at 12,000RPM
BT50 ODP 16X144	50	M16	29.00	40.00	144.00	106.0	100.00	M24	4.19	16.00000 ~	71EAD3871D313 ~	144.00~	SAI ~	02 ~	101.8~	4654640	Balance to G6.3 at 12,000RPM
BT50 ODP 16X194	50	M16	29.00	55.00	194.00	156.0	150.00	M24	5.24	16.00000 ~	71EAD3871D313 ~	194.00~	SAI ~	02 ~	101.8~	4654641	Balance to G6.3 at 12,000RPM
BT50 ODP 16X244	50	M16	29.00	55.00	244.00	206.0	200.00	M24	5.60	16.00000 ~	71EAD3871D313 ~	244.00~	SAI ~	02 ~	101.8~	4654642	Balance to G6.3 at 12,000RPM

If the "B type" option is required, the plug screw must be removed from the flange cooling hole (Use a 2mm hex key)
