TaeguTec Cutting Tools - Metal Working Tools - Thread Making -

MTE D-2 (DOUBLE INSERT) : Double insert type indexable threading end mills for various internal or external threading

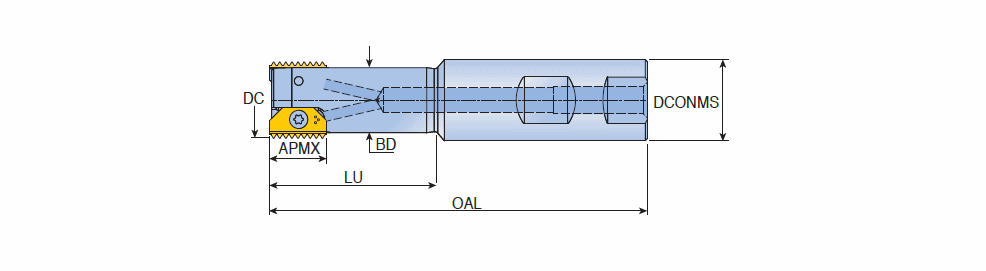

Designation	APMX	DC	DCONMS	BD	LU	OAL	Shank			Screw	HAND	ClssID	CCMS	CICT	LTA	fz (max)	fz (min)	IIC	IIC_2	IIC_3	IIC_4	IIC_5	GICAT
MTE D20.0-2-W20-14	14.00	20.00	20.00	16.00	41.00	93.00	W	0.20	Y ~	~	~	71EF07E083383 ~	~	2~	43.00~	0.150~	0.050~	IS$$153644967559015 ~	IS$$268889146532485 ~	IS$$386193978996895 ~	~	~	6198631
MTE D30-2-W25-21	21.00	30.00	25.00	24.00	52.00	108.00	W	0.40	Y ~	~	~	71EF07E083383 ~	~	2~	52.00~	0.150~	0.050~	IS$$230457153077970 ~	IS$$268869988820730 ~	IS$$309353483966000 ~	IS$$347756174535246 ~	IS$$386169010278006 ~	6198632
MTE D40-2-W32-30	30.00	40.00	32.00	30.00	70.00	130.00	W	0.70	Y ~	~	~	71EF07E083383 ~	~	2~	70.00~	0.150~	0.050~	IS$$192023056815570 ~	IS$$307245906307527 ~	IS$$424528933298913 ~	~	~	6198633
MTE D50-2-W40-40	40.00	50.00	40.00	38.00	78.00	153.00	W	0.00	Y ~	~	~	71EF07E083383 ~	~	2~	83.00~	0.150~	0.050~	IS$$115269239986940 ~	IS$$192114982603625 ~	IS$$309444800505875 ~	~	~	6198634

Minimum bore should be one-third larger than D (diameter)
All end mills are equipped with a bore for internal coolant
