TaeguTec Cutting Tools - Metal Working Tools - Thread Making -

MTF D (MULTI) : Indexable multi-insert shell mills for large diameter threading of intenal or external ones

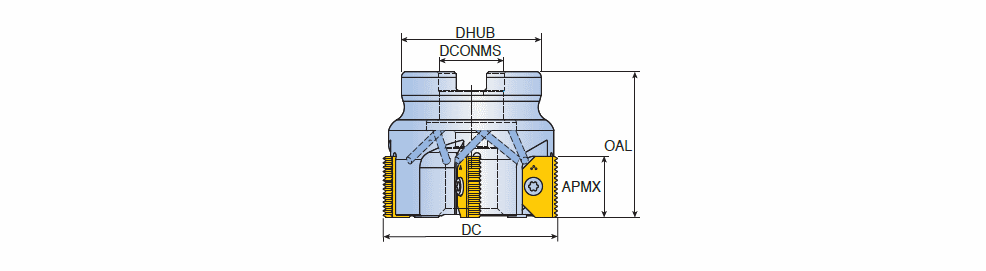

Designation	DC	APMX	CICT	DCONMS	OAL		HAND	ClssID	CCMS	CZCMS	DHUB	fz (max)	fz (min)	LTA	IIC	IIC_2	IIC_3	IIC_4	IIC_5	GICAT
MTF D063-5-22-21	63.00	21.00	5	22.00	50.00	0.60	~	71EF07E083383 ~	2200 ~	2200 ~	48.00~	0.150~	0.050~	50.00~	IS$$230457153077970 ~	IS$$268869988820730 ~	IS$$309353483966000 ~	IS$$347756174535246 ~	IS$$386169010278006 ~	6198635
MTF D063-4-22-30	63.00	30.00	4	22.00	50.00	0.70	~	71EF07E083383 ~	2200 ~	2200 ~	40.00~	0.150~	0.050~	50.00~	IS$$192023056815570 ~	IS$$307245906307527 ~	IS$$424528933298913 ~	~	~	6196153
MTF D080-4-27-30	80.00	30.00	4	27.00	50.00	1.22	~	71EF07E083383 ~	2700 ~	2700 ~	60.00~	0.150~	0.050~	50.00~	IS$$192023056815570 ~	IS$$307245906307527 ~	IS$$424528933298913 ~	~	~	6198636
MTF D080-4-27-40	80.00	40.00	4	27.00	65.00	1.22	~	71EF07E083383 ~	2700 ~	2700 ~	60.00~	0.150~	0.050~	65.00~	IS$$115269239986940 ~	IS$$192114982603625 ~	IS$$309444800505875 ~	~	~	6198637
MTF D100-4-32-30	100.00	30.00	4	32.00	50.00	1.29	~	71EF07E083383 ~	3200 ~	3200 ~	78.00~	0.150~	0.050~	50.00~	IS$$192023056815570 ~	IS$$307245906307527 ~	IS$$424528933298913 ~	~	~	6198638
MTF D100-4-32-40	100.00	40.00	4	32.00	65.00	1.22	~	71EF07E083383 ~	3200 ~	3200 ~	78.00~	0.150~	0.050~	65.00~	IS$$115269239986940 ~	IS$$192114982603625 ~	IS$$309444800505875 ~	~	~	6198639

All shell mills are equipped with a bore for internal coolant
