TaeguTec Cutting Tools - Metal Working Tools - Parting & Grooving -

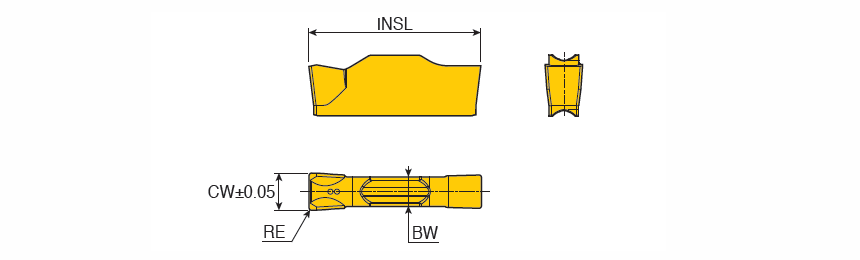

RSC : Single-ended C-type inserts for general machining of parting on small dia. solid bar and shallow grooving with strong cutting edge

Designation	SSC	CW	RE	BW	INSL	S	CWTOL	SC	R	fg (min)	fg (max)	CB1	W	W+-toler	ClssID	CBMD	GRDMFG	IIC	GICAT	giic	Tough ‹————› Hard Grade & Vc Click on grade for cutting speed value
RSC 2	2	2.00	0.20	1.60	14.00	4.00~	0.050~	L ~	0.000~	0.05	0.18	M9 ~	2.00~	0.05~	71DDA089C8D1E ~	C ~	TT7220~	IS$$689252594363100 ~	6300850	3	TT8020 TT7220 TT9080
RSC 3	3	3.00	0.20	2.40	14.00	4.00~	0.050~	L ~	0.000~	0.07	0.25	M9 ~	3.00~	0.05~	71DDA089C8D1E ~	C ~	TT7220~	IS$$680695653612351 ~	6300853	3	TT8020 TT7220 TT9080
RSC 4	4	4.00	0.30	3.00	14.00	4.00~	0.050~	L ~	0.000~	0.08	0.30	M9 ~	4.00~	0.05~	71DDA089C8D1E ~	C ~	TT7220~	IS$$384245525932128 ~	6300856	3	TT8020 TT7220 TT9080
RSC 5	5	5.00	0.30	4.00	17.50	5.10~	0.050~	L ~	0.000~	0.09	0.35	M9 ~	5.00~	0.05~	71DDA089C8D1E ~	C ~	TT7220~	IS$$311838940154613 ~	6300859	3	TT8020 TT7220 TT9080
