TaeguTec Cutting Tools - Metal Working Tools - Parting & Grooving -

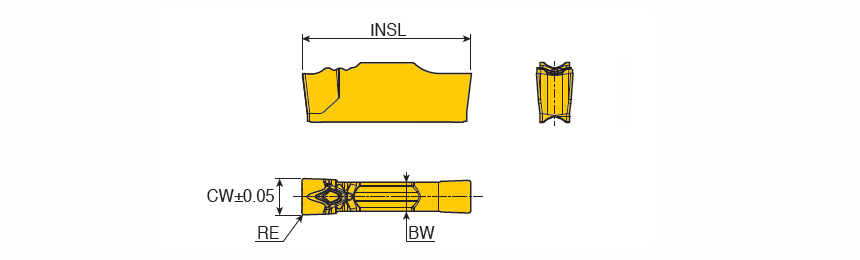

RSJ : Single-ended J-type inserts for low cutting force machining of parting on small dia. solid bar and shallow grooving with sharp cutting edge

Designation	SSC	CW	RE	BW	INSL	S	CWTOL	SC	R	fg (min)	fg (max)	CB1	W	W+-toler	ClssID	CBMD	GRDMFG	IIC	GICAT	giic	Tough ‹————› Hard Grade & Vc Click on grade for cutting speed value
RSJ 2	2	2.00	0.20	1.60	14.00	4.00~	0.050~	L ~	0.000~	0.04	0.12	M6E ~	2.00~	0.05~	71DDA089C8D1E ~	J ~	TT7220~	IS$$689252594363100 ~	6300862	3	TT8020 TT7220 TT9080
RSJ 3	3	3.00	0.20	2.40	14.00	4.00~	0.050~	L ~	0.000~	0.04	0.16	M6E ~	3.00~	0.05~	71DDA089C8D1E ~	J ~	TT7220~	IS$$680695653612351 ~	6300865	3	TT8020 TT7220 TT9080
RSJ 4	4	4.00	0.30	3.00	14.00	4.00~	0.050~	L ~	0.000~	0.05	0.18	M6E ~	4.00~	0.05~	71DDA089C8D1E ~	J ~	TT7220~	IS$$384245525932128 ~	6300868	3	TT8020 TT7220 TT9080
RSJ 5	5	5.00	0.30	4.00	17.50	5.10~	0.050~	L ~	0.000~	0.05	0.20	M6E ~	5.00~	0.05~	71DDA089C8D1E ~	J ~	TT7220~	IS$$311838940154613 ~	6300871	3	TT8020 TT7220 TT9080
