TaeguTec Cutting Tools - Metal Working Tools - Turning -

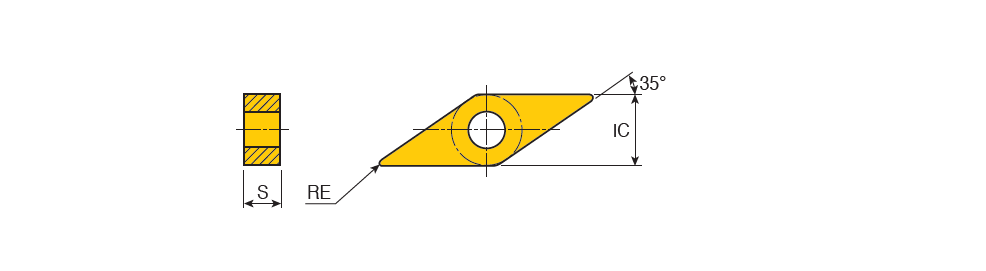

VNMX-FX (RHINO) : Negative 35° Rhombic RHINOTURN inserts for finishing of mild steels with optimal chip control on pulley & ball stud machining

Designation	IC	S	RE	CBMD	alpha	AN	ap (min)	ap (max)	ft (min)	ft (max)	CEDC	Precise	Utility	l	SC	ClssID	RHINO	COATP	GRDMFG	IFS	IIC	INSI	INST	ISO STD	SSC	GICAT	GIREM	giic	GICODE	Tough ‹————› Hard Grade & Vc Click on grade for cutting speed value
VNMX 130404 FX	7.94	4.76	0.40	FX ~	35~	0.00~	0.10	1.00	0.05	0.20	4~	~	U ~	0.00~	V ~	71DD68D301C30 ~	RHINO-TURN ~	Cermet ~	8125B ~	2~	ISO$VN1304042NA$$04 ~	2.531 ~	VNMX ~	Y ~	13 ~	6306129		5		TT2010 TT8125B TT5080 CT3000 PV3010
VNMX 130408 FX	7.94	4.76	0.80	FX ~	35~	0.00~	0.20	1.00	0.07	0.20	4~	~	U ~	0.00~	V ~	71DD68D301C30 ~	RHINO-TURN ~	Cermet ~	8115B ~	2~	ISO$VN1304082NA$$08 ~	2.532 ~	VNMX ~	Y ~	13 ~	6306130		5		TT2010 TT5080 TT8115B CT3000 PV3010
