TaeguTec Cutting Tools - Metal Working Tools - Turning -

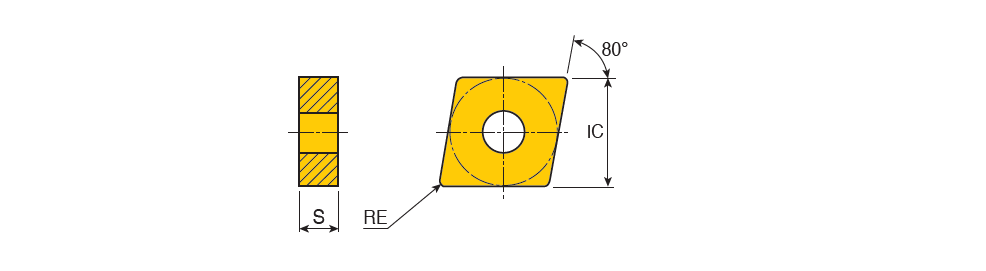

CNGG-ML (RHINO) : Negative ground 80° Rhombic RHINOTURN inserts for machining of aluminum and exotic materials

Designation	IC	S	RE	l	CBMD	alpha	AN	ap (min)	ap (max)	ft (min)	ft (max)	CEDC	Precise	Utility	SC	ClssID	RHINO	COATP	GRDMFG	IFS	IIC	INSI	INST	ISO STD	SSC	GICAT	giic	Tough ‹————› Hard Grade & Vc Click on grade for cutting speed value
CNGG 090401 ML	9.52	4.76	0.10	9.52~	ML ~	80~	0.00~	0.10	1.00	0.03	0.10	4~	P ~	~	C ~	71DD68D301C30 ~	RHINO-TURN ~	PVD ~	K10 ~	2~	ISO$CN0904012NB$$01 ~	330 ML ~	CNGG ~	Y ~	9 ~	6139411	2	TT5080 K10
CNGG 090402 ML	9.52	4.76	0.20	9.52~	ML ~	80~	0.00~	0.20	1.20	0.05	0.15	4~	P ~	~	C ~	71DD68D301C30 ~	RHINO-TURN ~	PVD ~	K10 ~	2~	ISO$CN0904022NB$$02 ~	330.5 ~	CNGG ~	Y ~	9 ~	6139412	2	TT5080 K10
CNGG 090404 ML	9.52	4.76	0.40	9.52~	ML ~	80~	0.00~	0.50	1.50	0.05	0.20	4~	P ~	~	C ~	71DD68D301C30 ~	RHINO-TURN ~	PVD ~	K10 ~	2~	ISO$CN0904042NB$$04 ~	331 ML ~	CNGG ~	Y ~	9 ~	6139413	2	TT5080 K10
CNGG 090408 ML	9.52	4.76	0.80	9.52~	ML ~	80~	0.00~	0.50	1.50	0.08	0.25	4~	P ~	~	C ~	71DD68D301C30 ~	RHINO-TURN ~	PVD ~	K10 ~	2~	ISO$CN0904082NB$$08 ~	332 ML ~	CNGG ~	Y ~	9 ~	6139414	2	TT5080 K10
