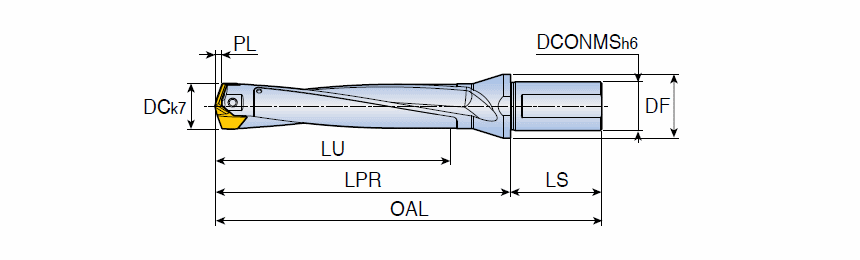

LCD-5XD (Weldon Shank) : SPADERUSH head changeable drill of large diameter for high productivity with coolant holes in drilling depth of 5XD

Drill depth: 5xdiameter

Designation	Tool sty	DCN	DCX	DCONMS	DF	LU	LPR	LS	OAL	PL	SSC	L1		Machines	Zeff	Min Tol	Max Tol	ClssID	MIID	CICT	DC	ULDR	Shank	CCFMS	CCTMS	IIC	LTA	GICAT
LCD 200-209-25T2-5D	HEAD TYPE ~	20.00	20.90	25.00	32.00	103.0	132.10	56.0	188.10	3.11	20	0.0~	Y ~	~	2~	0~	0~	71E01A0608FE4 ~	LCD-200-P	1~	20.00~	5.00~	W ~	11 ~	ZYL ~	IS$$113860795294950 ~	128.99~	6144850
LCD 210-219-25T2-5D	HEAD TYPE ~	21.00	21.90	25.00	32.00	108.0	137.30	56.0	193.30	3.29	21	0.0~	Y ~	~	2~	0~	0~	71E01A0608FE4 ~	LCD-210-P	1~	21.00~	5.00~	W ~	11 ~	ZYL ~	IS$$115033787407700 ~	134.01~	6192331
LCD 220-229-25T2-5D	HEAD TYPE ~	22.00	22.90	25.00	32.00	113.0	142.40	56.0	198.40	3.42	22	0.0~	Y ~	~	2~	0~	0~	71E01A0608FE4 ~	LCD-220-P	1~	22.00~	5.00~	W ~	11 ~	ZYL ~	IS$$114653327002996 ~	138.98~	6176927
LCD 230-239-25T2-5D	HEAD TYPE ~	23.00	23.90	25.00	32.00	119.0	147.60	56.0	203.60	3.60	23	0.0~	Y ~	~	2~	0~	0~	71E01A0608FE4 ~	LCD-230-P	1~	23.00~	5.00~	W ~	11 ~	ZYL ~	IS$$114653376449184 ~	144.00~	6176928
LCD 240-249-32T2-5D	HEAD TYPE ~	24.00	24.90	32.00	40.00	124.0	158.70	60.0	218.70	3.73	24	0.0~	Y ~	~	2~	0~	0~	71E01A0608FE4 ~	LCD-240-P	1~	24.00~	5.00~	W ~	11 ~	ZYL ~	IS$$114653438280010 ~	154.97~	6176930
LCD 250-259-32T2-5D	HEAD TYPE ~	25.00	25.90	32.00	40.00	129.0	163.90	60.0	223.90	3.91	25	0.0~	Y ~	~	2~	0~	0~	71E01A0608FE4 ~	LCD-250-P	1~	25.00~	5.00~	W ~	11 ~	ZYL ~	IS$$113222629751550 ~	159.99~	6133578
LCD 260-269-32T2-5D	HEAD TYPE ~	26.00	26.90	32.00	40.00	134.0	169.00	60.0	229.00	4.04	26	130.0~	Y ~	~	2~	0~	0~	71E01A0608FE4 ~	LCD-260-P	1~	26.00~	5.00~	W ~	11 ~	ZYL ~	IS$$49752012372080 ~	164.96~	3204835
LCD 270-279-32T2-5D	HEAD TYPE ~	27.00	27.90	32.00	40.00	139.0	174.20	60.0	234.20	4.22	27	135.0~	Y ~	~	2~	0~	0~	71E01A0608FE4 ~	LCD-270-P	1~	27.00~	5.00~	W ~	11 ~	ZYL ~	IS$$112873317413626 ~	169.98~	6121031
LCD 280-289-32T2-5D	HEAD TYPE ~	28.00	28.90	32.00	40.00	144.0	184.40	60.0	244.40	4.35	28	140.0~	Y ~	~	2~	0~	0~	71E01A0608FE4 ~	LCD-280-P	1~	28.00~	5.00~	W ~	11 ~	ZYL ~	IS$$113181682036884 ~	180.05~	6133579
LCD 290-299-32T2-5D	HEAD TYPE ~	29.00	29.90	32.00	40.00	150.0	189.50	60.0	249.50	4.53	29	145.0~	Y ~	~	2~	0~	0~	71E01A0608FE4 ~	LCD-290-P	1~	29.00~	5.00~	W ~	11 ~	ZYL ~	IS$$113149707736400 ~	184.97~	6133580
LCD 300-309-32T2-5D	HEAD TYPE ~	30.00	30.90	32.00	42.00	155.0	194.70	60.0	254.70	4.67	30	150.0~	Y ~	~	2~	0~	0~	71E01A0608FE4 ~	LCD-300-P	1~	30.00~	5.00~	W ~	11 ~	ZYL ~	IS$$112697484665592 ~	190.03~	6119853
LCD 310-319-32T2-5D	HEAD TYPE ~	31.00	31.90	32.00	42.00	160.0	199.90	60.0	259.90	4.85	31	155.0~	Y ~	~	2~	0~	0~	71E01A0608FE4 ~	LCD-310-P	1~	31.00~	5.00~	W ~	11 ~	ZYL ~	IS$$113181755743962 ~	195.05~	6133581
LCD 320-329-40T2-5D	HEAD TYPE ~	32.00	32.90	40.00	48.00	165.0	207.00	68.0	275.00	4.98	32	160.0~	Y ~	~	2~	0~	0~	71E01A0608FE4 ~	LCD-320-P	1~	32.00~	5.00~	W ~	11 ~	ZYL ~	IS$$113181792597510 ~	202.02~	6133582
LCD 330-339-40T2-5D	HEAD TYPE ~	33.00	33.90	40.00	48.00	170.0	212.20	68.0	280.20	5.16	33	165.0~	Y ~	~	2~	0~	0~	71E01A0608FE4 ~	LCD-330-P	1~	33.00~	5.00~	W ~	11 ~	ZYL ~	IS$$113181829451064 ~	207.04~	6133583
LCD 340-349-40T2-5D	HEAD TYPE ~	34.00	34.90	40.00	48.00	175.0	217.30	68.0	285.30	5.34	34	170.0~	Y ~	~	2~	0~	0~	71E01A0608FE4 ~	LCD-340-P	1~	34.00~	5.00~	W ~	11 ~	ZYL ~	IS$$113181872438208 ~	211.96~	6133584
LCD 350-359-40T2-5D	HEAD TYPE ~	35.00	35.90	40.00	48.00	180.0	222.40	68.0	290.40	5.44	35	175.0~	Y ~	~	2~	0~	0~	71E01A0608FE4 ~	LCD-350-P	1~	35.00~	5.00~	W ~	11 ~	ZYL ~	IS$$113181909291775 ~	216.96~	6133585
LCD 360-369-40T2-5D	HEAD TYPE ~	36.00	36.90	40.00	48.00	186.0	227.60	68.0	295.60	5.62	36	180.0~	Y ~	~	2~	0~	0~	71E01A0608FE4 ~	LCD-360-P	1~	36.00~	5.00~	W ~	11 ~	ZYL ~	IS$$113181946145348 ~	221.98~	6133586
LCD 370-379-40T2-5D	HEAD TYPE ~	37.00	37.90	40.00	48.00	191.0	232.80	68.0	300.80	5.80	37	185.0~	Y ~	~	2~	0~	0~	71E01A0608FE4 ~	LCD-370-P	1~	37.00~	5.00~	W ~	11 ~	ZYL ~	IS$$113181982998927 ~	227.00~	6133587
LCD 380-389-40T2-5D	HEAD TYPE ~	38.00	38.90	40.00	50.00	196.0	242.90	68.0	310.90	5.91	38	190.0~	Y ~	~	2~	0~	0~	71E01A0608FE4 ~	LCD-380-P	1~	38.00~	5.00~	W ~	11 ~	ZYL ~	IS$$112861761124560 ~	236.99~	6120555
LCD 390-399-40T2-5D	HEAD TYPE ~	39.00	39.90	40.00	50.00	201.0	248.10	68.0	316.10	6.09	39	195.0~	Y ~	~	2~	0~	0~	71E01A0608FE4 ~	LCD-390-P	1~	39.00~	5.00~	W ~	11 ~	ZYL ~	IS$$113182038253276 ~	242.01~	6133588
LCD 400-410-40T2-5D	HEAD TYPE ~	40.00	41.00	40.00	50.00	206.0	253.30	68.0	321.30	6.27	40	200.0~	Y ~	~	2~	0~	0~	71E01A0608FE4 ~	LCD-400-P	1~	40.00~	5.00~	W ~	11 ~	ZYL ~	IS$$113107220786714 ~	247.03~	6133589
