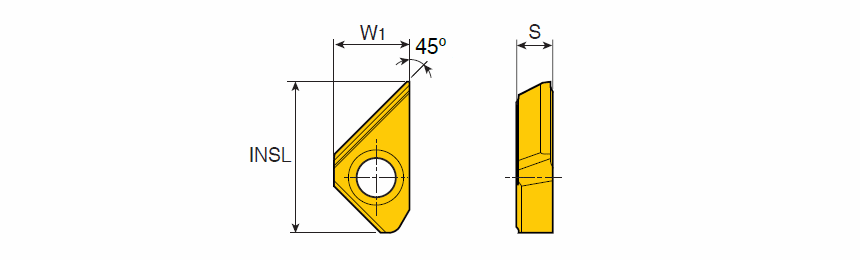

XCGT ...-C45 : Chamfering insert for T-Chamfer holder

Designation	INSL	W1	S	a	APMX	S1	CBMD	SC	ClssID	GRDMFG	IIC	GICAT	GIREM	giic	GICODE	Grade & Vc Click on grade for cutting speed value
XCGT 0603-C45	12.30	6.18	2.80	45.0~	5.89	6.00~	C ~	X ~	71DDA089C8D1E ~	TT9080~	IS$$80462026706792 ~	6210622		1		TT9080
XCGT 0903-C45	16.00	8.50	3.30	45.0~	8.07	9.00~	C ~	X ~	71DDA089C8D1E ~	TT9080~	IS$$433139859699570 ~	6210625		1		TT9080
