Home Page > Hole Making > > XCGT ...-C60

Hole Making
Main Application

Related Tool

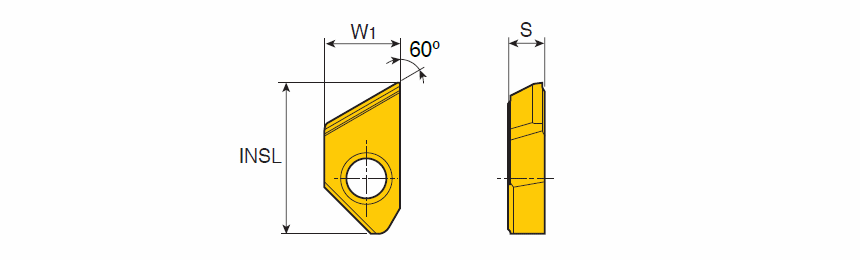

XCGT ...-C60 : Chamfering insert for T-Chamfer holder

Designation	INSL	W1	S	a	APMX	S1	CBMD	SC	ClssID	GRDMFG	IIC	GICAT	GIREM	giic	GICODE	Grade & Vc Click on grade for cutting speed value
XCGT 0603-C60	12.30	6.18	2.80	60.0~	3.43	6.00~	C ~	X ~	71DDA089C8D1E ~	TT9080~	IS$$80462026706792 ~	6210623		1		TT9080
XCGT 0903-C60	16.00	8.50	3.30	60.0~	4.78	9.00~	C ~	X ~	71DDA089C8D1E ~	TT9080~	IS$$433139859699570 ~	6210626		1		TT9080
