TaeguTec Cutting Tools - Metal Working Tools - Milling & Solid End mills -

RNGN 1207 FL : Flat type negative round ceramic inserts for high speed milling of super alloys

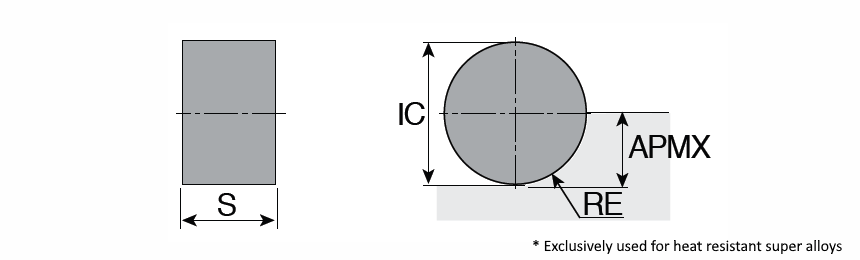

Designation	RE	IC	S	APMX	S1	Insert	ap (min)	ap (max)	fz (max)	fz (min)	SF	SC	ClssID	CEDC	ESP	GRDMFG	IIC	Pocket	WEP	GICAT	giic	Tough ‹————› Hard Grade & Vc Click on grade for cutting speed value
RNGN 1207 FL-E	6.35	12.70	7.94	6.00	12.00~	CS-RN12 ~	0.50	3.00	0.250	0.100	M10 ~	~	71D1AA6635E76 ~	8~	C60 ~	TC3020~	IS$$320347723939516 ~	RNGN 12 ~	0~	6196366	2	TC3030 TC3020
RNGN 1207 FL-E04	6.35	12.70	7.94	6.00	12.00~	CS-RN12 ~	0.50	3.00	0.250	0.100	M10 ~	~	71D1AA6635E76 ~	8~	C60 ~	TC3020~	IS$$320347723939516 ~	RNGN 12 ~	0~	6196367	2	TC3030 TC3020
RNGN 1207 FL-T6	6.35	12.70	7.94	6.00	12.00~	CS-RN12 ~	0.50	3.00	0.250	0.100	M10 ~	~	71D1AA6635E76 ~	8~	C60 ~	TC3020~	IS$$320347723939516 ~	RNGN 12 ~	0~	6196368	2	TC3030 TC3020

Edge preparations
E: 0.02-0.03mm Honing
E04: 0.04-0.05mm Honing
T6: 0.1mm x 20° Land
Click the Better Suggestions icon to see more choices.
