RPGN 0903 FL : Flat type positive round ceramic inserts for high speed milling of super alloys with low cutting force

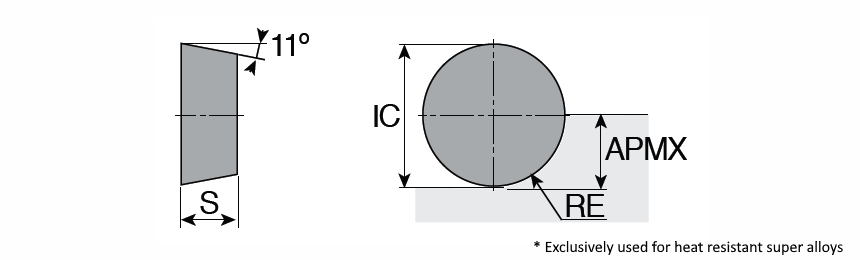

Designation	RE	IC	S	APMX	S1	Insert	ap (min)	ap (max)	fz (max)	fz (min)	SF	SC	ClssID	CEDC	ESP	GRDMFG	IIC	Pocket	WEP	GICAT	GIREM	giic	GICODE	Tough ‹————› Hard Grade & Vc Click on grade for cutting speed value
RPGN 0903 FL-E04	4.76	9.52	3.18	4.70	9.00~	CS-RP09 ~	0.50	1.50	0.150	0.070	M10 ~	~	71D1AA6635E76 ~	4~	C60 ~	TC3020~	IS$$116746934946420 ~	RPGN 09 ~	0~	6192178		2		TC3030 TC3020

Edge preparations
E04: 0.04-0.05mm Honing
