Turning
Main Application

SVJCR/L-SH : Screw type holders with 93° approach angle & & 35° VC.T positive inserts for Swiss turn

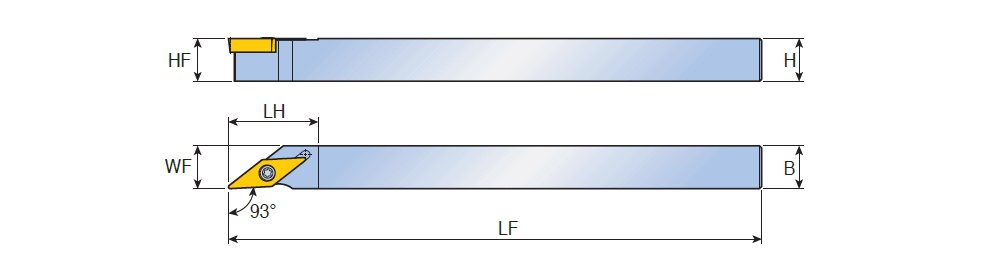

Right-hand shown

Right-hand shown

  DesignationH HF B LF LH WF IC t Kr KAPR CL Tool typ R/L ClssID MIID  IIC GICATGIREMgiicGICODE
  SVJCL 1010 K11-SH 10.010.010.0125.0021.010.006.35~3.18~44~93.0~SCREW-SH ~SQUARE ~L ~71E01A0E85121 ~VCGT 110304 FL X ~IS$$527365847304348 ~6177297 0
  SVJCR 1010 K11-SH 10.010.010.0125.0021.010.006.35~3.18~44~93.0~SCREW-SH ~SQUARE ~R ~71E01A0E85121 ~VCGT 110304 FL X ~IS$$527365847304348 ~6177294 0
  SVJCL 1212 K11-SH 12.012.012.0125.0021.012.006.35~3.18~44~93.0~SCREW-SH ~SQUARE ~L ~71E01A0E85121 ~VCGT 110304 FL X ~IS$$527365847304348 ~6177298 0
  SVJCR 1212 K11-SH 12.012.012.0125.0021.012.006.35~3.18~44~93.0~SCREW-SH ~SQUARE ~R ~71E01A0E85121 ~VCGT 110304 FL X ~IS$$527365847304348 ~6177295 0
  SVJCL 1616 K11-SH 16.016.016.0125.0021.016.006.35~3.18~44~93.0~SCREW-SH ~SQUARE ~L ~71E01A0E85121 ~VCGT 110304 FL X ~IS$$527365847304348 ~6177299 0
  SVJCR 1616 K11-SH 16.016.016.0125.0021.016.006.35~3.18~44~93.0~SCREW-SH ~SQUARE ~R ~71E01A0E85121 ~VCGT 110304 FL X ~IS$$527365847304348 ~6177296 0
  SVJCL 2020 K11-SH 20.020.020.0125.0021.020.006.35~3.18~44~93.0~SCREW-SH ~SQUARE ~L ~71E01A0E85121 ~VCGT 110304 FL X ~IS$$527365847304348 ~6319023 0
  SVJCR 2020 K11-SH 20.020.020.0125.0021.020.006.35~3.18~44~93.0~SCREW-SH ~SQUARE ~R ~71E01A0E85121 ~VCGT 110304 FL X ~IS$$527365847304348 ~6319022 0
