TaeguTec Cutting Tools - Metal Working Tools - Parting & Grooving -

TDUF : Double-ended inserts with UF-Type chip breaker for parting and grooving of bearing steel & low carbon steel in low feed rate

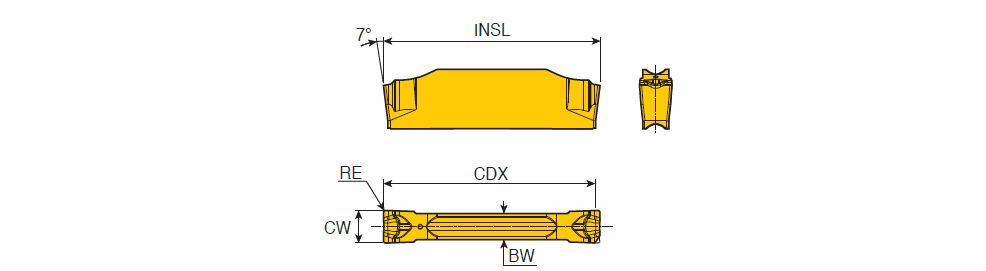

Designation	SSC	CW	RE	BW	INSL	CDX	CWTOL	SC	R	fg (min)	fg (max)	CB1	W	W+-toler	ClssID	HAND	CEDC	COATP	CBMD	GRDMFG	IIC	GICAT	giic	Grade & Vc Click on grade for cutting speed value
TDUF 2	2	2.00	0.20	1.50	20.00	19.00	0.000~	~	0.000~	0.03	0.11	~	0.00~	0.00~	71DDA089C8D1E ~	N ~	2~	PVD ~	UF ~	TT9080~	IS$$1202408999517474 ~	6101272	1	TT9080
TDUF 3	3	3.00	0.20	2.40	20.00	19.00	0.000~	~	0.000~	0.04	0.13	~	0.00~	0.00~	71DDA089C8D1E ~	N ~	2~	PVD ~	UF ~	TT9080~	IS$$2123833997319338 ~	6304567	1	TT9080
TDUF 4	4	4.00	0.30	3.00	20.00	19.00	0.000~	~	0.000~	0.04	0.15	~	0.00~	0.00~	71DDA089C8D1E ~	N ~	2~	PVD ~	UF ~	TT9080~	~	6304568	1	TT9080
