Turning
Main Application

TMY-SDJCR : Screw type Y-axis holders with 93° approach angle & 55° DC.T positive inserts for Swiss type automatic lathes

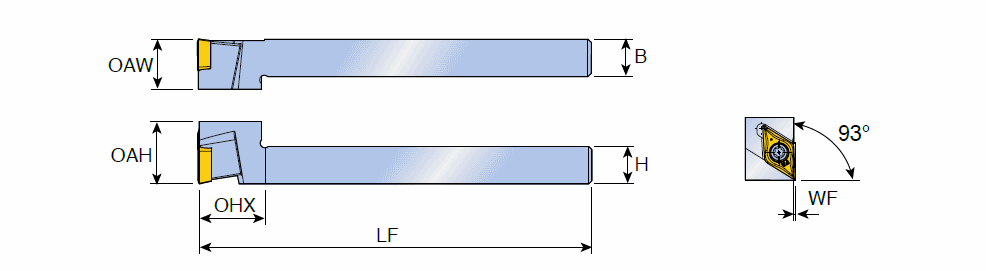

Right-hand shown

Right-hand shown

  DesignationH B LF OHX OAH OAW WF MIID IC t Kr KAPR CL Tool typ R/L ClssID  IIC IIC_2 IIC_3 IIC_4 GICATGIREMgiicGICODE
  TMY-SDJCR 1212 K11 12.012.0125.0021.020.016.000.00DCMT 11T302 FA 9.52~3.97~27~93.0~SCREW-SH ~SQUARE ~R ~71E01A0E85121 ~X ~IS$$1010370168438665 ~IS$$1161173142749010 ~IS$$1429709850404096 ~IS$$1519702245489130 ~6190687 0
  TMY-SDJCR 1616 K11 16.016.0125.0021.020.016.000.00DCMT 11T302 FA 9.52~3.97~27~93.0~SCREW-SH ~SQUARE ~R ~71E01A0E85121 ~X ~IS$$1010370168438665 ~IS$$1161173142749010 ~IS$$1429709850404096 ~IS$$1519702245489130 ~6190688 0
