TMY-SVJBR-TB : Screw type high pressure coolant Y-axis holders with 93° approach angle & 35° VB.T positive inserts for Swiss type automatic lathes

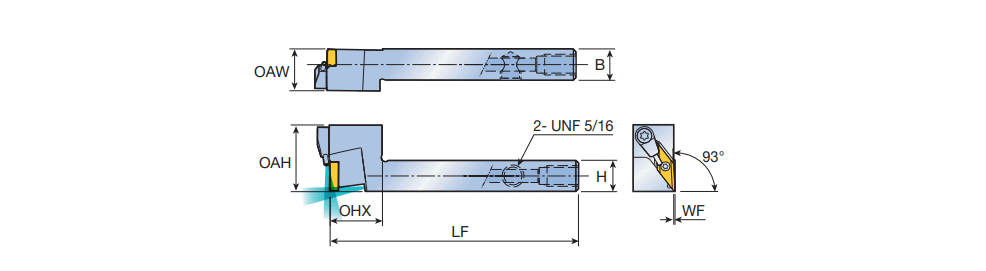

Right-hand shown
Coolant pressure: recommended 70 bar, max. up to 140 bar

Designation	H	B	LF	OHX	OAH	OAW	WF	MIID	IC	t	Kr	KAPR	CL	Tool typ	R/L	ClssID		IIC	IIC_2	IIC_3	GICAT	GIREM	giic	GICODE
TMY-SVJBR 1212 K11-TB	12.0	12.0	125.00	20.0	25.5	16.00	0.00	VBET 110302 R-GF	6.35~	3.18~	44~	93.0~	SCREW-SH-TB ~	SQUARE ~	R ~	71E01A0E85121 ~	O ~	IS$$1106456328248117 ~	IS$$791704338878032 ~	IS$$827402735590531 ~	6190693		0
TMY-SVJBR 1616 K11-TB	16.0	16.0	125.00	20.0	25.5	16.00	0.00	VBET 110302 R-GF	6.35~	3.18~	44~	93.0~	SCREW-SH-TB ~	SQUARE ~	R ~	71E01A0E85121 ~	O ~	IS$$1106456328248117 ~	IS$$791704338878032 ~	IS$$827402735590531 ~	6190694		0
