TaeguTec Cutting Tools - Metal Working Tools - Turning -

TMZ-SDJCR : Screw type shift holders with 93° approach angle & 55° DC.T positive inserts for Swiss type automatic lathes

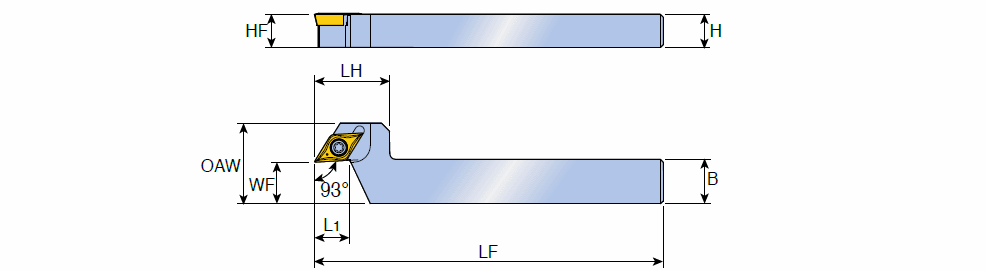

Right-hand shown

Designation	H	HF	B	LF	L1	OAW	LH	WF	IC	t	Kr	KAPR	CL	Tool typ	R/L	ClssID	MIID		IIC	IIC_2	IIC_3	IIC_4	GICAT	GIREM	giic	GICODE
TMZ-SDJCR 1216 K11-F15	12.0	12.0	16.0	125.00	12.50	29.00	27.0	15.00	9.52~	3.97~	27~	93.0~	SCREW-SH ~	SQUARE ~	R ~	71E01A0E85121 ~	DCMT 11T302 FA	X ~	IS$$1010370168438665 ~	IS$$1161173142749010 ~	IS$$1429709850404096 ~	IS$$1519702245489130 ~	6195361		0
TMZ-SDJCR 1620 K11-F15	16.0	16.0	20.0	125.00	16.30	29.00	30.0	15.00	9.52~	3.97~	27~	93.0~	SCREW-SH ~	SQUARE ~	R ~	71E01A0E85121 ~	DCMT 11T302 FA	X ~	IS$$1010370168438665 ~	IS$$1161173142749010 ~	IS$$1429709850404096 ~	IS$$1519702245489130 ~	6316147		0
