TaeguTec Cutting Tools - Metal Working Tools - Turning -

TMZ-SVLBR : Screw type shift holders with 95° approach angle & 35° VB.T positive inserts for Swiss type automatic lathes

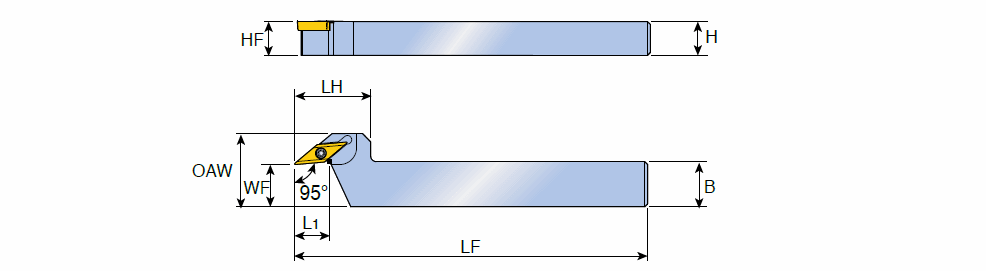

Right-hand shown

Designation	H	HF	B	LF	L1	OAW	LH	WF	IC	t	Kr	KAPR	CL	Tool typ	R/L	ClssID	MIID		IIC	IIC_2	IIC_3	GICAT	GIREM	giic	GICODE
TMZ-SVLBR 1216 K11-F15	12.0	12.0	16.0	125.00	12.30	26.00	27.0	15.00	6.35~	3.18~	0~	95.0~	SCREW-SH ~	SQUARE ~	R ~	71E01A0E85121 ~	VBET 110302 R-GF	X ~	IS$$1106456328248117 ~	IS$$791704338878032 ~	IS$$827402735590531 ~	6195362		0
TMZ-SVLBR 1620 K11-F15	16.0	16.0	20.0	125.00	16.20	26.00	30.0	15.00	6.35~	3.18~	0~	95.0~	SCREW-SH ~	SQUARE ~	R ~	71E01A0E85121 ~	VBET 110302 R-GF	X ~	IS$$1106456328248117 ~	IS$$791704338878032 ~	IS$$827402735590531 ~	6316148		0
