SOMT ...-DL : Unique economical 4-corner TOP DRILL inserts for mild steel applications

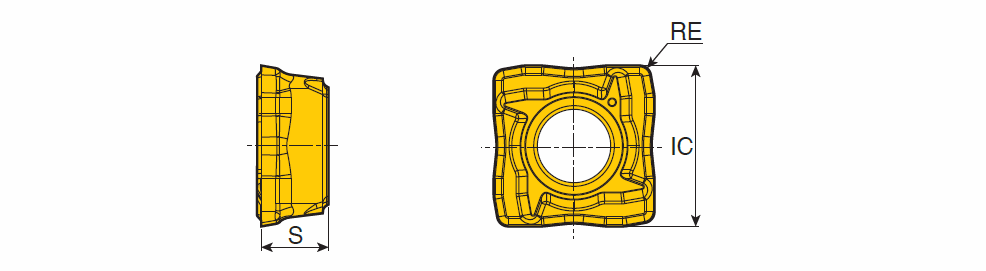

Designation	IC	S	RE	S1	CB	SC	ClssID	GRDMFG	IIC	GICAT	giic	Grade & Vc Click on grade for cutting speed value
SOMT 050204 DL	4.90	2.38	0.40	5.00~	DL ~	S ~	71DDA089C8D1E ~	TT9080~	IS$$243242147924688 ~	6175266	1	TT9080
SOMT 060204 DL	5.70	2.38	0.40	6.00~	DL ~	S ~	71DDA089C8D1E ~	TT9080~	IS$$256437525583344 ~	6172463	1	TT9080
SOMT 070306 DL	6.80	2.80	0.60	7.00~	DL ~	S ~	71DDA089C8D1E ~	TT9080~	IS$$285581773934868 ~	6139346	1	TT9080
SOMT 08T306 DL	7.90	3.97	0.60	8.00~	DL ~	S ~	71DDA089C8D1E ~	TT9080~	IS$$945396965303392 ~	5521871	1	TT9080
SOMT 09T308 DL	9.20	3.97	0.80	9.00~	DL ~	S ~	71DDA089C8D1E ~	TT9080~	IS$$1047741021497728 ~	6301092	1	TT9080
SOMT 11T308 DL	11.00	3.97	0.80	11.00~	DL ~	S ~	71DDA089C8D1E ~	TT9080~	IS$$955440375131362 ~	6304150	1	TT9080
SOMT 130408 DL	12.80	4.40	0.80	13.00~	DL ~	S ~	71DDA089C8D1E ~	TT9080~	IS$$993706682674101 ~	6304151	1	TT9080
SOMT 150510 DL	15.00	4.80	1.00	15.00~	DL ~	S ~	71DDA089C8D1E ~	TT9080~	IS$$541350582135276 ~	6304152	1	TT9080
