TaeguTec Cutting Tools - Metal Working Tools - Turning -

TMS-SDUNL-TB (RHINO-S) : RHINOTURN screw type high pressure coolant sleeve holders with 93° approach angle & DN.G 1305 negative inserts for swiss type automatic lathes

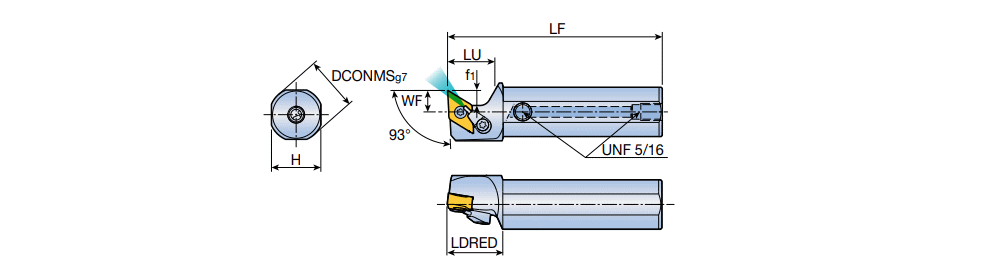

Left-hand shown
Coolant pressure: recommended 70 bar, max. up to 140 bar

Designation	DCONMS	H	LF	WF	LU	LDRED	d	t	Kr	KAPR	CL	Tool typ	R/L	ClssID	MIID		IIC	IIC_2	IIC_3	GICAT	GIREM	giic	GICODE
TMS-25H SDUNL 1305-TB	25.00	23.0	100.00	10.00	22.0	26.0	11.11~	5.56~	30~	93.0~	SCREW-R-TB ~	BORING BAR ~	L ~	71E01A0E9CBA9 ~	DNGG 130502 ML	O ~	IS$$1500013479022245 ~	IS$$2001615641700060 ~	IS$$502545593005776 ~	6312651		0
