SDJNR-RS-TB (RHINO-S) : RHINOTURN screw type high pressure coolant holders with 93° approach angle & DN.G 1305 negative inserts for Swiss type automatic lathes

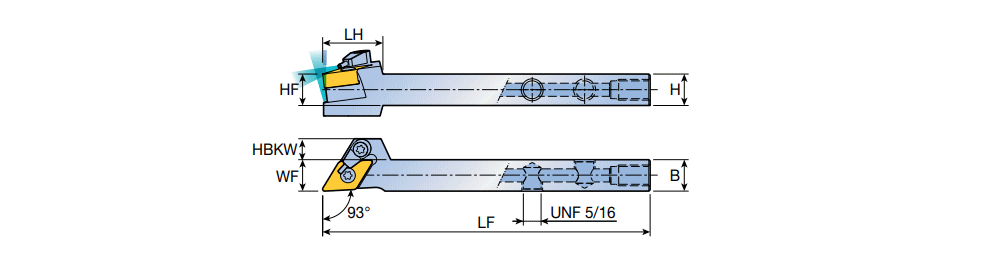

Right-hand shown
Coolant pressure: recommended 70 bar, max. up to 140 bar

Designation	H	HF	B	LF	LH	WF	HBKW	d	t	Kr	KAPR	CL	Tool typ	R/L	ClssID	MIID		IIC	IIC_2	IIC_3	GICAT	GIREM	giic	GICODE
SDJNR 1212 K1305-RS-TB	12.0	12.0	12.0	125.00	23.0	12.00	8.0	11.11~	5.56~	27~	93.0~	SCREW-R-TB ~	SQUARE ~	R ~	71E01A0E85121 ~	DNGG 130502 ML	O ~	IS$$1500013479022245 ~	IS$$2001615641700060 ~	IS$$502545593005776 ~	6194900		0
SDJNR 1616 K1305-RS-TB	16.0	16.0	16.0	125.00	23.0	16.00	4.0	11.11~	5.56~	27~	93.0~	SCREW-R-TB ~	SQUARE ~	R ~	71E01A0E85121 ~	DNGG 130502 ML	O ~	IS$$1500013479022245 ~	IS$$2001615641700060 ~	IS$$502545593005776 ~	6195120		0
