TaeguTec Cutting Tools - Metal Working Tools - Turning -

SVJNR-RS-TB (RHINO-S) : RHINOTURN screw type high pressure coolant holders with 93° approach angle & VN.X 1304 negative inserts for Swiss type automatic lathes

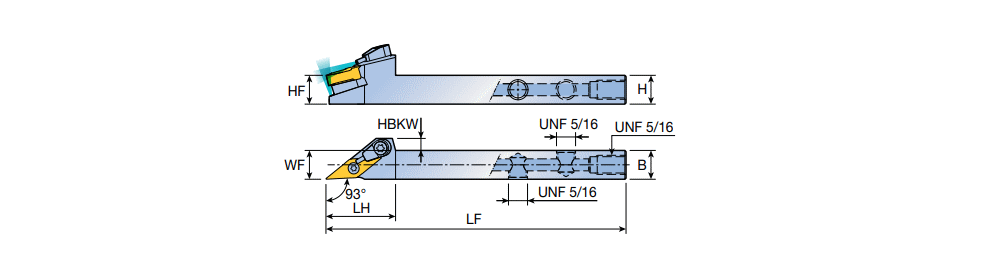

Right-hand shown
Coolant pressure: recommended 70 bar, max. up to 140 bar

Designation	H	HF	B	LF	LH	WF	HBKW	MIID	d	t	Kr	KAPR	CL	Tool typ	R/L	ClssID		IIC	IIC_2	GICAT	GIREM	giic	GICODE
SVJNR 1212 K1304-RS-TB	12.0	12.0	12.0	125.00	29.0	12.00	5.0	VNGX 130402 ML	7.94~	4.76~	44~	93.0~	SCREW-R-TB ~	SQUARE ~	R ~	71E01A0E85121 ~	O ~	IS$$198595985237772 ~	IS$$930251849938740 ~	6302314		0
SVJNR 1616 K1304-RS-TB	16.0	16.0	16.0	125.00	29.0	16.00	1.0	VNGX 130402 ML	7.94~	4.76~	44~	93.0~	SCREW-R-TB ~	SQUARE ~	R ~	71E01A0E85121 ~	O ~	IS$$198595985237772 ~	IS$$930251849938740 ~	6302315		0
