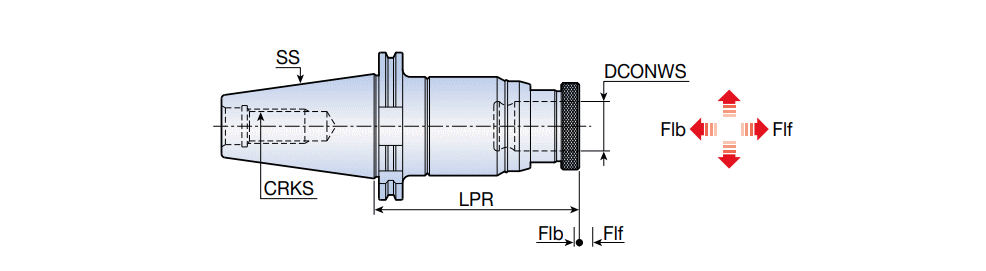

DIN69871-TC (TAPPING) : Tapping holders with DIN 69871 form A shanks & floating mechanism


 IT_TAPER SHANK GRADE  IT_SURFACE HARDNESS 58~60HRC  IT_N5
  DesignationSS Tap min Tap max DCONWS LPR Flb Flf Ta CRKS ClssID LS GICATGIREMgiicGICODE
  DIN69871 40 TC 12-90 40 M3 M12 19.0090.006.512.0TA1 M16 71EAD3871D313 ~68.4~4655372 0
  DIN69871 40 TC 22-142 40 M6 M24 31.00142.0014.513.0TA2 M16 71EAD3871D313 ~68.4~4655373 0
  DIN69871 50 TC 38-190 50 M18 M38 48.00190.0020.020.0TA3 M24 71EAD3871D313 ~101.8~4655376 0
  DIN69871 50 TC 12-130 50 M3 M12 19.00130.006.512.0TA1 M24 71EAD3871D313 ~101.8~4655374 0
  DIN69871 50 TC 22-142 50 M6 M24 31.00142.0014.513.0TA2 M24 71EAD3871D313 ~101.8~4655375 0
Torque control system
