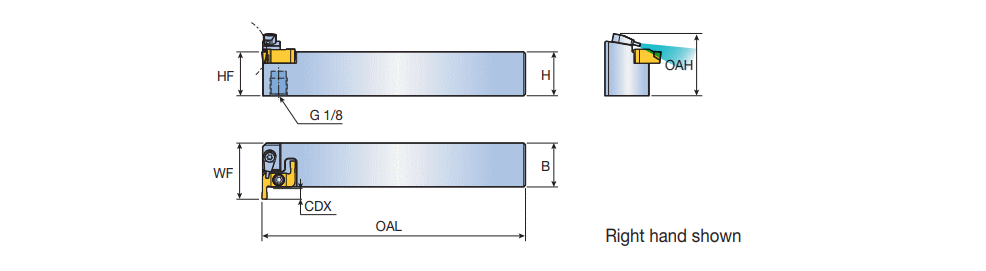

TXFPR/L-TB (FACE-R) : Perpendicular type external holders with high pressure coolant for shallow face grooving & face turning
Coolant pressure: recommended 70 bar, max. up to 140 bar

Coolant pressure: recommended 70 bar, max. up to 140 bar

 COOLANT_COOLBURST
  DesignationCWN  CWX  SSC  H HF B OAL OAH WF CDX Tool typ  HAND ClssID MIID IIC GICATGIREMgiicGICODE
  TXFPL 2525-TB 2.004.004 ~25.025.025.0150.0035.532.006.00SQUARE ~O ~L ~71E01A0E85121 ~TDFX 3E-0.3-D24L ~IS$$235523839664672 ~6311287 0
  TXFPR 2525-TB 2.004.004 ~25.025.025.0150.0035.532.006.00SQUARE ~O ~R ~71E01A0E85121 ~TDFX 3E-0.3-D24R ~IS$$235405969722084 ~6306345 0
External Turning & Grooving is available depending on the insert
