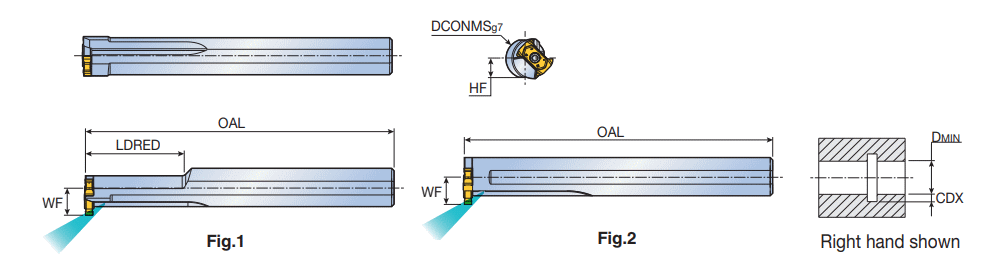

TQHIR/L : Boring bars for internal shallow grooving on small diameter with coolant hole & TQIS 14-4 corner inserts

Designation	S2	S1	CWN	CWX	DCONMS	OAL	LDRED	WF	DMIN	HF	Fig.		Tool typ	HAND	ClssID	MIID	SSC	IIC	GICAT
TQHIL 16-16.5-14	1 ~	14.00~	1.50	3.00	16.00	125.00	40.0	11.00	16.50	7.5	1	O ~	BORING BAR ~	L ~	71E01A0E9CBA9 ~	TQIS 14-2.00-0.10 ~	14 ~	IS$$920464856577072 ~	6309621
TQHIR 16-16.5-14	1 ~	14.00~	1.50	3.00	16.00	125.00	40.0	11.00	16.50	7.5	1	O ~	BORING BAR ~	R ~	71E01A0E9CBA9 ~	TQIS 14-2.00-0.10 ~	14 ~	IS$$920464856577072 ~	6138266
TQHIL 16-16.5-14-L20	2 ~	14.00~	1.50	3.00	16.00	125.00	20.0	11.00	16.50	7.5	1	O ~	BORING BAR ~	L ~	71E01A0E9CBA9 ~	TQIS 14-2.00-0.10 ~	14 ~	IS$$920464856577072 ~	6264546
TQHIR 16-16.5-14-L20	2 ~	14.00~	1.50	3.00	16.00	125.00	20.0	11.00	16.50	7.5	1	O ~	BORING BAR ~	R ~	71E01A0E9CBA9 ~	TQIS 14-2.00-0.10 ~	14 ~	IS$$920464856577072 ~	6262295
TQHIL 20-16.5-14	3 ~	14.00~	1.50	3.00	20.00	125.00	40.0	13.00	16.50	9.0	1	O ~	BORING BAR ~	L ~	71E01A0E9CBA9 ~	TQIS 14-2.00-0.10 ~	14 ~	IS$$920464856577072 ~	6309623
TQHIR 20-16.5-14	3 ~	14.00~	1.50	3.00	20.00	125.00	40.0	13.00	16.50	9.0	1	O ~	BORING BAR ~	R ~	71E01A0E9CBA9 ~	TQIS 14-2.00-0.10 ~	14 ~	IS$$920464856577072 ~	6309622
TQHIL 20-16.5-14-L20	4 ~	14.00~	1.50	3.00	16.00	125.00	20.0	13.00	16.50	9.0	1	O ~	BORING BAR ~	L ~	71E01A0E9CBA9 ~	TQIS 14-2.00-0.10 ~	14 ~	IS$$920464856577072 ~	6264547
TQHIR 20-16.5-14-L20	4 ~	14.00~	1.50	3.00	16.00	125.00	20.0	13.00	16.50	9.0	1	O ~	BORING BAR ~	R ~	71E01A0E9CBA9 ~	TQIS 14-2.00-0.10 ~	14 ~	IS$$920464856577072 ~	6264548
TQHIL 16-20-14	7 ~	14.00~	1.50	3.00	16.00	125.00	-	11.00	20.00	7.5	2	O ~	BORING BAR ~	L ~	71E01A0E9CBA9 ~	TQIS 14-2.00-0.10 ~	14 ~	IS$$920464856577072 ~	6234465
TQHIR 16-20-14	7 ~	14.00~	1.50	3.00	16.00	125.00	-	11.00	20.00	7.5	2	O ~	BORING BAR ~	R ~	71E01A0E9CBA9 ~	TQIS 14-2.00-0.10 ~	14 ~	IS$$920464856577072 ~	6234461
TQHIL 20-24-14	8 ~	14.00~	1.50	3.00	20.00	125.00	-	13.00	24.00	9.0	2	O ~	BORING BAR ~	L ~	71E01A0E9CBA9 ~	TQIS 14-2.00-0.10 ~	14 ~	IS$$920464856577072 ~	6234466
TQHIR 20-24-14	8 ~	14.00~	1.50	3.00	20.00	125.00	-	13.00	24.00	9.0	2	O ~	BORING BAR ~	R ~	71E01A0E9CBA9 ~	TQIS 14-2.00-0.10 ~	14 ~	IS$$920464856577072 ~	6234462
TQHIL 25-29-14	9 ~	14.00~	1.50	3.00	25.00	200.00	-	15.50	29.00	11.5	2	O ~	BORING BAR ~	L ~	71E01A0E9CBA9 ~	TQIS 14-2.00-0.10 ~	14 ~	IS$$920464856577072 ~	6234467
TQHIR 25-29-14	9 ~	14.00~	1.50	3.00	25.00	200.00	-	15.50	29.00	11.5	2	O ~	BORING BAR ~	R ~	71E01A0E9CBA9 ~	TQIS 14-2.00-0.10 ~	14 ~	IS$$920464856577072 ~	6234463
TQHIL 32-36-14	10 ~	14.00~	1.50	3.00	32.00	200.00	-	19.00	36.00	15.0	2	O ~	BORING BAR ~	L ~	71E01A0E9CBA9 ~	TQIS 14-2.00-0.10 ~	14 ~	IS$$920464856577072 ~	6234468
TQHIR 32-36-14	10 ~	14.00~	1.50	3.00	32.00	200.00	-	19.00	36.00	15.0	2	O ~	BORING BAR ~	R ~	71E01A0E9CBA9 ~	TQIS 14-2.00-0.10 ~	14 ~	IS$$920464856577072 ~	6234464

CDX: Refer to insert dimension
