TaeguTec Cutting Tools - Metal Working Tools - Parting & Grooving -

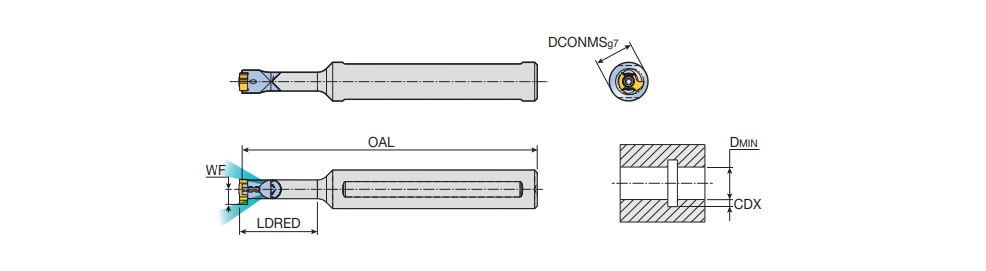

TMIHN-C : Solid carbide boring bars with coolant holes for internal shallow grooving on small diameter Dmin=10mm with TMIS 8 inserts

Designation	CWN	CWX	DCONMS	OAL	LDRED	WF	DMIN	CND	MIID	S1		Tool typ	R/L	ClssID	SSC	IIC	GICAT	GIREM	giic	GICODE
TMIHN 12C-24-8	0.50	2.00	12.00	92.00	24.0	4.70	10.00	2.00	TMIS 8-2.00-0.1 ~	8.00~	O ~	ROUND ~	N ~	71E01A0E9CBA9 ~	8 ~	IS$$114477869768878 ~	6325242		0
TMIHN 12C-32-8	0.50	2.00	12.00	100.00	32.0	4.70	10.00	2.00	TMIS 8-2.00-0.1 ~	8.00~	O ~	ROUND ~	N ~	71E01A0E9CBA9 ~	8 ~	IS$$114477869768878 ~	6186351		0

CDX: Refer to insert dimension
