QH-HVUNR/L (RHINO) : Exchangeable Hook lever RHINOTURN boring heads with 35° VN.X1304 inserts & 93° approach angle for anti-vibration deep boring machining

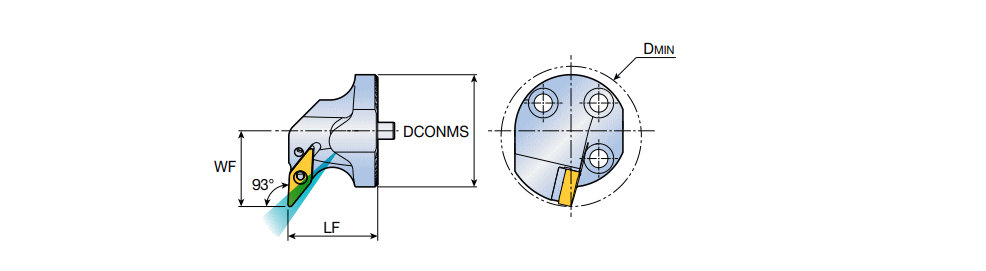

Right-hand shown

Designation	DCONMS	LF	WF	DMIN	HAND	IC	t	Kr	KAPR	CL	Tool typ	ClssID	MIID	CCTMS	CCFMS	LTA	IIC	GICAT	GIREM	giic	GICODE
QH40-HVUNL-1304	40.00	32.00	27.00	50.00	L ~	7.94~	4.76~	50~	93.0~	HOOK LEVER ~	ADAPTER ~	71E01A0E9CBA9 ~	VNMX 130408 PC	CMS ~	01 ~	32.00~	IS$$930251849938740 ~	6321562		0
QH40-HVUNR-1304	40.00	32.00	27.00	50.00	R ~	7.94~	4.76~	50~	93.0~	HOOK LEVER ~	ADAPTER ~	71E01A0E9CBA9 ~	VNMX 130408 PC	CMS ~	01 ~	32.00~	IS$$930251849938740 ~	6321561		0

When applying 50mm shank, Dmin for the assembly is 60mm.
When applying 60mm shank, Dmin for the assembly is 70mm.
