QH-SCLCR/L : Exchangeable screw type boring heads with 80° CC.T positive inserts & 95° approach angle for anti-vibration deep boring machining

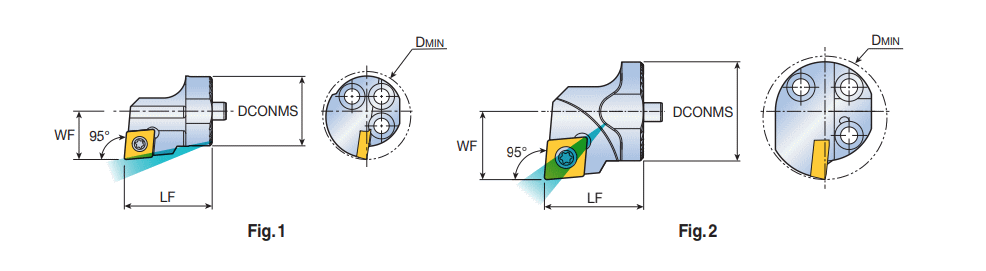

Right-hand shown

Designation	DCONMS	LF	WF	DMIN	Fig.	HAND	d	t	Kr	KAPR	CL	Tool typ	ClssID	MIID	CCTMS	CCFMS	LTA	IIC	IIC_10	IIC_2	IIC_3	IIC_4	IIC_5	IIC_6	IIC_7	IIC_8	IIC_9	GICAT
QH16-SCLCL-06	16.00	20.00	11.00	20.00	1	L ~	6.35~	2.38~	95~	95.0~	SCREW ~	ADAPTER ~	71E01A0E9CBA9 ~	CCMT 060204 MT	CMS ~	01 ~	20.00~	IS$$178783465364460 ~	~	IS$$204312266528868 ~	IS$$419080644385020 ~	IS$$471634691995176 ~	IS$$486096134550744 ~	IS$$553111559897244 ~	IS$$569865532368312 ~	~	~	6316051
QH16-SCLCR-06	16.00	20.00	11.00	20.00	1	R ~	6.35~	2.38~	95~	95.0~	SCREW ~	ADAPTER ~	71E01A0E9CBA9 ~	CCMT 060204 MT	CMS ~	01 ~	20.00~	IS$$178783465364460 ~	~	IS$$204312266528868 ~	IS$$419080644385020 ~	IS$$471634691995176 ~	IS$$486096134550744 ~	IS$$553111559897244 ~	IS$$569865532368312 ~	~	~	6316052
QH20-SCLCL-09	20.00	20.00	13.00	25.00	2	L ~	9.52~	3.97~	95~	95.0~	SCREW ~	ADAPTER ~	71E01A0E9CBA9 ~	CCMT 09T308 MT	CMS ~	01 ~	20.00~	IS$$1010067612493725 ~	IS$$976567949280738 ~	IS$$403607462742000 ~	IS$$416590983908532 ~	IS$$427297856882468 ~	IS$$453250120528370 ~	IS$$688395929940126 ~	IS$$779315603996199 ~	IS$$869826274721424 ~	IS$$937642410666438 ~	6312587
QH20-SCLCR-09	20.00	20.00	13.00	25.00	2	R ~	9.52~	3.97~	95~	95.0~	SCREW ~	ADAPTER ~	71E01A0E9CBA9 ~	CCMT 09T308 MT	CMS ~	01 ~	20.00~	IS$$1010067612493725 ~	IS$$976567949280738 ~	IS$$403607462742000 ~	IS$$416590983908532 ~	IS$$427297856882468 ~	IS$$453250120528370 ~	IS$$688395929940126 ~	IS$$779315603996199 ~	IS$$869826274721424 ~	IS$$937642410666438 ~	6309303
QH25-SCLCL-09	25.00	22.00	17.00	32.00	2	L ~	9.52~	3.97~	95~	95.0~	SCREW ~	ADAPTER ~	71E01A0E9CBA9 ~	CCMT 09T308 MT	CMS ~	01 ~	22.00~	IS$$1010067612493725 ~	IS$$976567949280738 ~	IS$$403607462742000 ~	IS$$416590983908532 ~	IS$$427297856882468 ~	IS$$453250120528370 ~	IS$$688395929940126 ~	IS$$779315603996199 ~	IS$$869826274721424 ~	IS$$937642410666438 ~	6312588
QH25-SCLCR-09	25.00	22.00	17.00	32.00	2	R ~	9.52~	3.97~	95~	95.0~	SCREW ~	ADAPTER ~	71E01A0E9CBA9 ~	CCMT 09T308 MT	CMS ~	01 ~	22.00~	IS$$1010067612493725 ~	IS$$976567949280738 ~	IS$$403607462742000 ~	IS$$416590983908532 ~	IS$$427297856882468 ~	IS$$453250120528370 ~	IS$$688395929940126 ~	IS$$779315603996199 ~	IS$$869826274721424 ~	IS$$937642410666438 ~	6309304
QH32-SCLCL-09	32.00	32.00	22.00	40.00	2	L ~	12.70~	4.76~	95~	95.0~	SCREW ~	ADAPTER ~	71E01A0E9CBA9 ~	CCMT 09T308 MT	CMS ~	01 ~	32.00~	IS$$320983609127580 ~	~	IS$$404733445515252 ~	IS$$555483279900150 ~	~	~	~	~	~	~	6231853
QH32-SCLCL-12	32.00	32.00	22.00	40.00	2	L ~	12.70~	4.76~	95~	95.0~	SCREW ~	ADAPTER ~	71E01A0E9CBA9 ~	CCMT 120408 MT	CMS ~	01 ~	32.00~	IS$$320983609127580 ~	~	IS$$404733445515252 ~	IS$$555483279900150 ~	~	~	~	~	~	~	6312589
QH32-SCLCR-09	32.00	32.00	22.00	40.00	2	R ~	12.70~	4.76~	95~	95.0~	SCREW ~	ADAPTER ~	71E01A0E9CBA9 ~	CCMT 09T308 MT	CMS ~	01 ~	32.00~	IS$$320983609127580 ~	~	IS$$404733445515252 ~	IS$$555483279900150 ~	~	~	~	~	~	~	6231852
QH32-SCLCR-12	32.00	32.00	22.00	40.00	2	R ~	12.70~	4.76~	95~	95.0~	SCREW ~	ADAPTER ~	71E01A0E9CBA9 ~	CCMT 120408 MT	CMS ~	01 ~	32.00~	IS$$320983609127580 ~	~	IS$$404733445515252 ~	IS$$555483279900150 ~	~	~	~	~	~	~	6309305
QH40-SCLCL-12	40.00	38.00	27.00	50.00	2	L ~	12.70~	4.76~	95~	95.0~	SCREW ~	ADAPTER ~	71E01A0E9CBA9 ~	CCMT 120408 MT	CMS ~	01 ~	38.00~	IS$$320983609127580 ~	~	IS$$404733445515252 ~	IS$$555483279900150 ~	~	~	~	~	~	~	6312590
QH40-SCLCR-12	40.00	38.00	27.00	50.00	2	R ~	12.70~	4.76~	95~	95.0~	SCREW ~	ADAPTER ~	71E01A0E9CBA9 ~	CCMT 120408 MT	CMS ~	01 ~	38.00~	IS$$320983609127580 ~	~	IS$$404733445515252 ~	IS$$555483279900150 ~	~	~	~	~	~	~	6309306

When applying 50mm shank, Dmin for the assembly is 60mm.
When applying 60mm shank, Dmin for the assembly is 70mm.
