QH-SDUCR/L : Exchangeable screw type boring heads with 55° DC.T positive inserts & 93° approach angle for anti-vibration deep boring machining

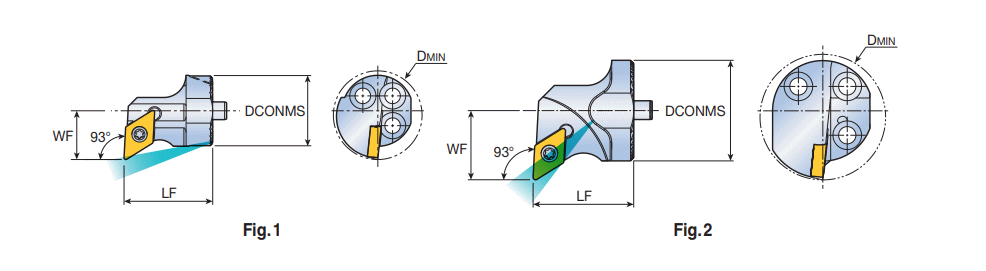

Right-hand shown

Designation	DCONMS	LF	WF	DMIN	Fig.	HAND	d	t	Kr	KAPR	CL	Tool typ	ClssID	MIID	CCTMS	CCFMS	LTA	IIC	IIC_2	IIC_3	IIC_4	IIC_5	GICAT
QH16-SDUCL-07	16.00	20.00	11.00	20.00	1	L ~	6.35~	2.38~	27~	93.0~	SCREW ~	ADAPTER ~	71E01A0E9CBA9 ~	DCMT 070204 FG	CMS ~	01 ~	20.00~	IS$$295098841832124 ~	IS$$370555894259168 ~	IS$$548561229492012 ~	~	~	6316053
QH16-SDUCR-07	16.00	20.00	11.00	20.00	1	R ~	6.35~	2.38~	27~	93.0~	SCREW ~	ADAPTER ~	71E01A0E9CBA9 ~	DCMT 070204 FG	CMS ~	01 ~	20.00~	IS$$295098841832124 ~	IS$$370555894259168 ~	IS$$548561229492012 ~	~	~	6316054
QH20-SDUCL-11	20.00	20.00	13.00	25.00	2	L ~	9.52~	3.97~	27~	93.0~	SCREW ~	ADAPTER ~	71E01A0E9CBA9 ~	DCMT 11T308 MT	CMS ~	01 ~	20.00~	IS$$1010370168438665 ~	IS$$1023930991875314 ~	IS$$1161173142749010 ~	IS$$1429709850404096 ~	IS$$1519702245489130 ~	6312592
QH20-SDUCR-11	20.00	20.00	13.00	25.00	2	R ~	9.52~	3.97~	27~	93.0~	SCREW ~	ADAPTER ~	71E01A0E9CBA9 ~	DCMT 11T308 MT	CMS ~	01 ~	20.00~	IS$$1010370168438665 ~	IS$$1023930991875314 ~	IS$$1161173142749010 ~	IS$$1429709850404096 ~	IS$$1519702245489130 ~	6312591
QH25-SDUCL-11	25.00	22.00	17.00	32.00	2	L ~	9.52~	3.97~	27~	93.0~	SCREW ~	ADAPTER ~	71E01A0E9CBA9 ~	DCMT 11T308 MT	CMS ~	01 ~	22.00~	IS$$1010370168438665 ~	IS$$1023930991875314 ~	IS$$1161173142749010 ~	IS$$1429709850404096 ~	IS$$1519702245489130 ~	6312594
QH25-SDUCR-11	25.00	22.00	17.00	32.00	2	R ~	9.52~	3.97~	27~	93.0~	SCREW ~	ADAPTER ~	71E01A0E9CBA9 ~	DCMT 11T308 MT	CMS ~	01 ~	22.00~	IS$$1010370168438665 ~	IS$$1023930991875314 ~	IS$$1161173142749010 ~	IS$$1429709850404096 ~	IS$$1519702245489130 ~	6312593
QH32-SDUCL-11	32.00	32.00	22.00	40.00	2	L ~	9.52~	3.97~	27~	93.0~	SCREW ~	ADAPTER ~	71E01A0E9CBA9 ~	DCMT 11T308 MT	CMS ~	01 ~	32.00~	IS$$1010370168438665 ~	IS$$1023930991875314 ~	IS$$1161173142749010 ~	IS$$1429709850404096 ~	IS$$1519702245489130 ~	6312596
QH32-SDUCR-11	32.00	32.00	22.00	40.00	2	R ~	9.52~	3.97~	27~	93.0~	SCREW ~	ADAPTER ~	71E01A0E9CBA9 ~	DCMT 11T308 MT	CMS ~	01 ~	32.00~	IS$$1010370168438665 ~	IS$$1023930991875314 ~	IS$$1161173142749010 ~	IS$$1429709850404096 ~	IS$$1519702245489130 ~	6312595
QH40-SDUCL-11	40.00	38.00	27.00	50.00	2	L ~	9.52~	3.97~	27~	93.0~	SCREW ~	ADAPTER ~	71E01A0E9CBA9 ~	DCMT 11T308 MT	CMS ~	01 ~	38.00~	IS$$1010370168438665 ~	IS$$1023930991875314 ~	IS$$1161173142749010 ~	IS$$1429709850404096 ~	IS$$1519702245489130 ~	6312598
QH40-SDUCR-11	40.00	38.00	27.00	50.00	2	R ~	9.52~	3.97~	27~	93.0~	SCREW ~	ADAPTER ~	71E01A0E9CBA9 ~	DCMT 11T308 MT	CMS ~	01 ~	38.00~	IS$$1010370168438665 ~	IS$$1023930991875314 ~	IS$$1161173142749010 ~	IS$$1429709850404096 ~	IS$$1519702245489130 ~	6312597

When applying 50mm shank, Dmin for the assembly is 60mm.
When applying 60mm shank, Dmin for the assembly is 70mm.
