TaeguTec Cutting Tools - Metal Working Tools - Turning -

QH-SDUNR/L(RHINO,RHINO-M) : Exchangeable screw type RHINOTURN boring heads with 55° DN.. inserts & 93° approach angle for anti-vibration deep boring machining

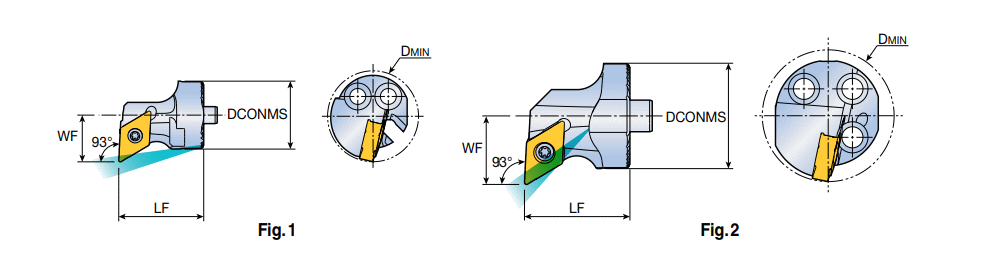

Right-hand shown

Designation	DCONMS	LF	WF	DMIN	Fig.		HAND	d	t	Kr	KAPR	CL	Tool typ	ClssID	MIID	CCTMS	CCFMS	LTA	IIC	IIC_2	IIC_3	IIC_4	GICAT
QH16-SDUNL-0803	16.00	20.00	11.00	20.00	1	O ~	L ~	7.00~	3.18~	27~	93.0~	SCREW ~	ADAPTER ~	71E01A0E9CBA9 ~	DNMX 080304 FGP	CMS ~	01 ~	20.00~	IS$$707509091021652 ~	~	~	~	6336419
QH16-SDUNR-0803	16.00	20.00	11.00	20.00	1	O ~	R ~	7.00~	3.18~	27~	93.0~	SCREW ~	ADAPTER ~	71E01A0E9CBA9 ~	DNMX 080304 FGP	CMS ~	01 ~	20.00~	IS$$707509091021652 ~	~	~	~	6336420
QH20-SDUNL-0803	20.00	20.00	13.00	25.00	2	O ~	L ~	7.00~	3.18~	27~	93.0~	SCREW ~	ADAPTER ~	71E01A0E9CBA9 ~	DNMX 080304 FGP	CMS ~	01 ~	20.00~	IS$$707509091021652 ~	~	~	~	6336425
QH20-SDUNR-0803	20.00	20.00	13.00	25.00	2	O ~	R ~	7.00~	3.18~	27~	93.0~	SCREW ~	ADAPTER ~	71E01A0E9CBA9 ~	DNMX 080304 FGP	CMS ~	01 ~	20.00~	IS$$707509091021652 ~	~	~	~	6336426
QH32-SDUNL-1305	32.00	32.00	22.00	40.00	2	O ~	L ~	11.11~	5.56~	27~	93.0~	SCREW ~	ADAPTER ~	71E01A0E9CBA9 ~	DNMG 130508 PC	CMS ~	01 ~	32.00~	IS$$1500013479022245 ~	IS$$2001615641700060 ~	IS$$899759615292330 ~	IS$$899773775059392 ~	6312999
QH32-SDUNR-1305	32.00	32.00	22.00	40.00	2	O ~	R ~	11.11~	5.56~	27~	93.0~	SCREW ~	ADAPTER ~	71E01A0E9CBA9 ~	DNMG 130508 PC	CMS ~	01 ~	32.00~	IS$$1500013479022245 ~	IS$$2001615641700060 ~	IS$$899759615292330 ~	IS$$899773775059392 ~	6312998

QH 16/20 : For RHINO-M-TURN insert
QH 32 : For RHINO-TURN insert
