Turning
Main Application

QH-HDUNR/L (RHINO) : Exchangeable Hook lever RHINOTURN boring heads with 55° DN.G 1305 inserts & 93° approach angle for anti-vibration deep boring machining

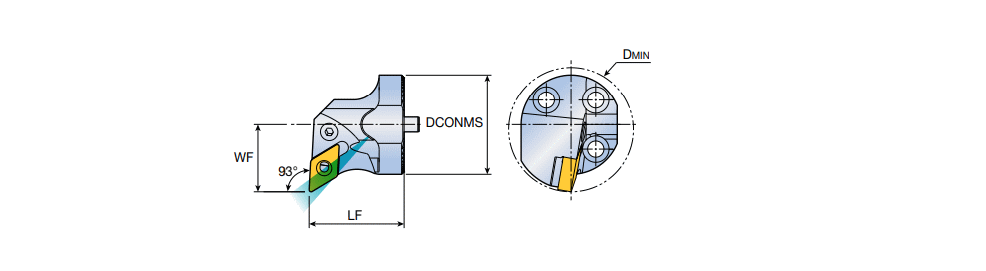

Right-hand shown

Right-hand shown

 COOLANT
  DesignationDCONMS LF WF DMIN  HAND d t Kr KAPR CL Tool typ ClssID MIID CCTMS CCFMS LTA IIC IIC_2 IIC_3 IIC_4 GICATGIREMgiicGICODE
  QH40-HDUNL-1305 40.0038.0027.0050.00O ~L ~11.11~5.56~27~93.0~HOOK LEVER ~ADAPTER ~71E01A0E9CBA9 ~DNMG 130508 PC CMS ~01 ~38.00~IS$$1500013479022245 ~IS$$2001615641700060 ~IS$$899759615292330 ~IS$$899773775059392 ~6321563 0
  QH40-HDUNR-1305 40.0038.0027.0050.00O ~R ~11.11~5.56~27~93.0~HOOK LEVER ~ADAPTER ~71E01A0E9CBA9 ~DNMG 130508 PC CMS ~01 ~38.00~IS$$1500013479022245 ~IS$$2001615641700060 ~IS$$899759615292330 ~IS$$899773775059392 ~6320590 0
When applying 50mm shank, Dmin for the assembly is 60mm.
When applying 60mm shank, Dmin for the assembly is 70mm.
