QH-SVUBR/L : Exchangeable screw type boring heads with 35° VB.T positive inserts & 93° approach angle for anti-vibration deep boring machining

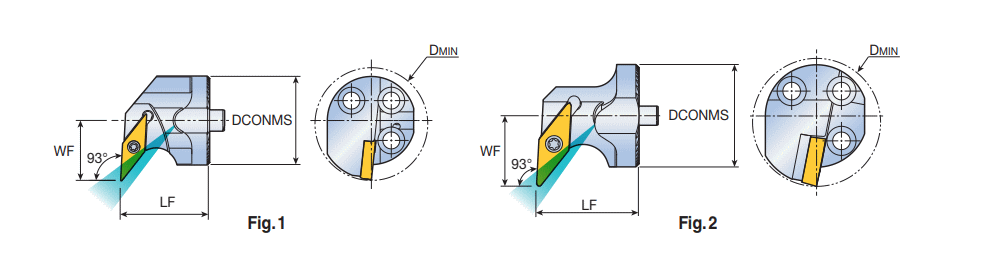

Right-hand shown

Designation	DCONMS	LF	WF	DMIN	Fig.	HAND	d	t	Kr	KAPR	CL	Tool typ	ClssID	MIID	CCTMS	CCFMS	LTA	IIC	IIC_2	IIC_3	IIC_4	GICAT	GIREM
QH20-SVUBL-11	20.00	20.00	16.00	27.00	1	L ~	6.35~	3.18~	50~	93.0~	SCREW ~	ADAPTER ~	71E01A0E9CBA9 ~	VBGT 110302 SA	CMS ~	01 ~	20.00~	IS$$1106456328248117 ~	IS$$768192322462738 ~	IS$$791704338878032 ~	IS$$827402735590531 ~	6312600
QH20-SVUBR-11	20.00	20.00	16.00	27.00	1	R ~	6.35~	3.18~	50~	93.0~	SCREW ~	ADAPTER ~	71E01A0E9CBA9 ~	VBGT 110302 SA	CMS ~	01 ~	20.00~	IS$$1106456328248117 ~	IS$$768192322462738 ~	IS$$791704338878032 ~	IS$$827402735590531 ~	6312599
QH25-SVUBL-11	25.00	25.00	17.00	31.00	1	L ~	6.35~	3.18~	50~	93.0~	SCREW ~	ADAPTER ~	71E01A0E9CBA9 ~	VBGT 110302 SA	CMS ~	01 ~	25.00~	IS$$1106456328248117 ~	IS$$768192322462738 ~	IS$$791704338878032 ~	IS$$827402735590531 ~	6312602
QH25-SVUBR-11	25.00	25.00	17.00	31.00	1	R ~	6.35~	3.18~	50~	93.0~	SCREW ~	ADAPTER ~	71E01A0E9CBA9 ~	VBGT 110302 SA	CMS ~	01 ~	25.00~	IS$$1106456328248117 ~	IS$$768192322462738 ~	IS$$791704338878032 ~	IS$$827402735590531 ~	6312601
QH32-SVUBL-16	32.00	32.00	22.00	40.00	2	L ~	9.52~	4.76~	50~	93.0~	SCREW ~	ADAPTER ~	71E01A0E9CBA9 ~	VBMT 160408 MT	CMS ~	01 ~	32.00~	IS$$884209950608906 ~	IS$$974204253037744 ~	~	~	6312604
QH32-SVUBR-16	32.00	32.00	22.00	40.00	2	R ~	9.52~	4.76~	50~	93.0~	SCREW ~	ADAPTER ~	71E01A0E9CBA9 ~	VBMT 160408 MT	CMS ~	01 ~	32.00~	IS$$884209950608906 ~	IS$$974204253037744 ~	~	~	6312603
QH40-SVUBL-16	40.00	32.00	27.00	50.00	2	L ~	9.52~	4.76~	50~	93.0~	SCREW ~	ADAPTER ~	71E01A0E9CBA9 ~	VBMT 160408 MT	CMS ~	01 ~	32.00~	IS$$884209950608906 ~	IS$$974204253037744 ~	~	~	6312606	When applying 50mm shank, Dmin for the assembly is 60mm. @When applying 60mm shank, Dmin for the assembly is 70mm.
QH40-SVUBR-16	40.00	32.00	27.00	50.00	2	R ~	9.52~	4.76~	50~	93.0~	SCREW ~	ADAPTER ~	71E01A0E9CBA9 ~	VBMT 160408 MT	CMS ~	01 ~	32.00~	IS$$884209950608906 ~	IS$$974204253037744 ~	~	~	6312605	When applying 50mm shank, Dmin for the assembly is 60mm. @When applying 60mm shank, Dmin for the assembly is 70mm.
