2P-TF90-R-05 : 90° Face mills with 2PKT inserts of high positive helical cutting edges

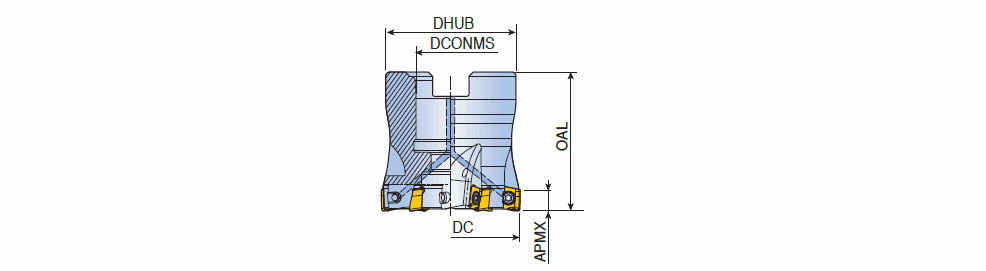

  DesignationTool sty DC CICT DCONMS DHUB OAL APMX  Arbor  S1 KAPR HAND RMPX PD Insert Mtg. Ref ClssID MIID CCTMS CCFMS FF/RN IIC LTA ZEFF ZEFP GICATGIREMgiicGICODE
  2P-TF90-732-16R-05 FACE MILL ~32.00716.0030.0032.004.70O 0.12A 5.00~90.0~ ~1.60~XF ~CMP-2P05 ~SH M8X1.25X25 ~71E01A05B627B ~2PKT 050304R-M FDA ~02 ~FF ~IS$$1730808543545830 ~32.00~7~7~6142872 0
  2P-TF90-840-16R-05 FACE MILL ~40.00816.0038.0040.004.70O 0.24A 5.00~90.0~ ~1.20~XF ~CMP-2P05 ~SH M8X1.25X25 ~71E01A05B627B ~2PKT 050304R-M FDA ~02 ~FF ~IS$$1730808543545830 ~40.00~8~8~6142873 0
  2P-TF90-840-22R-05 FACE MILL ~40.00822.0038.0040.004.70O 0.20A 5.00~90.0~ ~1.20~XF ~CMP-2P05 ~SH M10X1.5X30 ~71E01A05B627B ~2PKT 050304R-M FDA ~02 ~FF ~IS$$1730808543545830 ~40.00~8~8~6114514 0
Mounting bolt with coolant through hole is available on request. (ordering example: SH M8X1.25X25-C)
