TaeguTec Cutting Tools - Metal Working Tools - Turning -

XNMG-FLP (RHINO-X) : Unique negative 70° rhombic inserts for finishing of steels

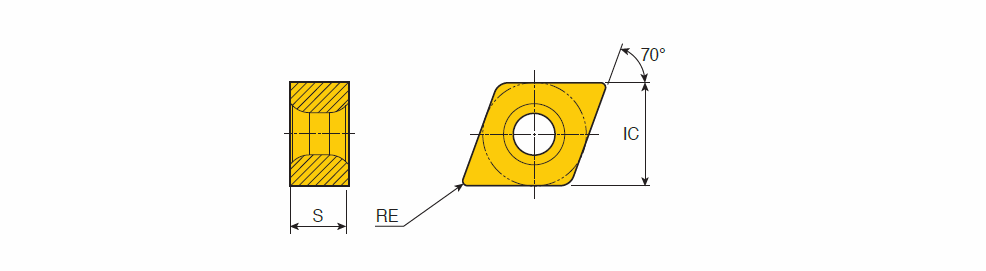

Right-hand shown

Designation	IC	S	RE	l	CBMD	alpha	AN	ap (min)	ap (max)	ft (min)	ft (max)	CEDC	Precise	Utility	SC	ClssID	RHINO	COATP	GRDMFG	IFS	IIC	INSI	INST	ISO STD	SSC	GICAT	GIREM	giic	GICODE	Tough ‹————› Hard Grade & Vc Click on grade for cutting speed value
XNMG 090402 FLP	8.70	4.76	0.20	9.25~	FLP ~	70~	0.00~	0.20	1.50	0.07	0.30	4~	~	U ~	X ~	71DDA089C8D1E ~	RHINO-X-TURN ~	CVD ~	8115B ~	2~	ISO$XN0904022NB$$02 ~	2.730. ~	XNMG ~	Y ~	9 ~	6308920		2		TT8125B TT8115B
XNMG 090404 FLP	8.70	4.76	0.40	9.25~	FLP ~	70~	0.00~	0.20	1.50	0.07	0.30	4~	~	U ~	X ~	71DDA089C8D1E ~	RHINO-X-TURN ~	CVD ~	8105B ~	2~	ISO$XN0904042NB$$04 ~	2.731 ~	XNMG ~	Y ~	9 ~	6330931		3		TT8125B TT8115B TT8105B
