TaeguTec Cutting Tools - Metal Working Tools - Turning -

XNMG-FGP (RHINO-X) : Unique negative 70° rhombic inserts for semi-finishing and finishing of steels

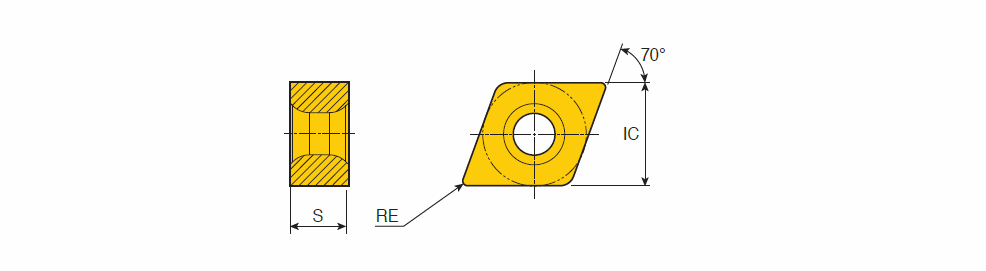

Right-hand shown

Designation	IC	S	RE	l	CBMD	alpha	AN	ap (min)	ap (max)	ft (min)	ft (max)	CEDC	Precise	Utility	SC	ClssID	RHINO	COATP	GRDMFG	IFS	IIC	INSI	INST	ISO STD	SSC	GICAT	giic	Tough ‹————› Hard Grade & Vc Click on grade for cutting speed value
XNMG 110504 FGP	11.11	5.56	0.40	11.82~	FGP ~	70~	0.00~	0.25	2.00	0.07	0.30	4~	~	U ~	X ~	71DDA089C8D1E ~	RHINO-X-TURN ~	CVD ~	8105B ~	2~	ISO$XN1105042NB$$04 ~	3.53.5 ~	XNMG ~	Y ~	11 ~	6189577	3	TT8125B TT8115B TT8105B
XNMG 110508 FGP	11.11	5.56	0.80	11.82~	FGP ~	70~	0.00~	0.30	2.00	0.10	0.35	4~	~	U ~	X ~	71DDA089C8D1E ~	RHINO-X-TURN ~	CVD ~	8105B ~	2~	ISO$XN1105082NB$$08 ~	3.53.5 ~	XNMG ~	Y ~	11 ~	6179304	3	TT8125B TT8115B TT8105B
XNMG 110512 FGP	11.11	5.56	1.20	11.82~	FGP ~	70~	0.00~	0.35	2.00	0.15	0.40	4~	~	U ~	X ~	71DDA089C8D1E ~	RHINO-X-TURN ~	CVD ~	8105B ~	2~	ISO$XN1105122NB$$12 ~	3.53.5 ~	XNMG ~	Y ~	11 ~	6311137	2	TT8115B TT8105B
