Turning
Main Application

A-SXQNR/L (RHINO-X) : Screw type RHINOXTURN boring bars with internal coolant, 100° approach angle & 70° corner angle XNMG inserts

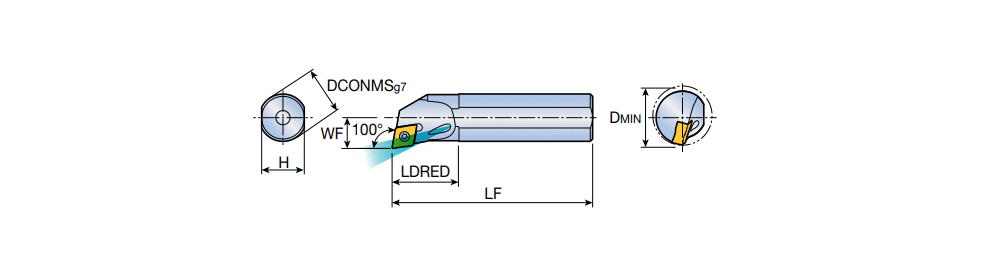

Right-hand shown

Right-hand shown

 COOLANT
  DesignationS1 DCONMS H LF LDRED WF DMIN IC S Kr KAPR CL Tool typ R/L ClssID MIID LTA IIC GICATGIREMgiicGICODE
  A16Q SXQNL 0904 0.00~16.0015.0180.0024.511.0020.008.70~4.76~100~100.0~SCREW-RX ~BORING BAR ~L ~71E01A0E9CBA9 ~XNMG 090404 FLP 34.50~IS$$782122684387184 ~6214370 0
  A16Q SXQNR 0904 0.00~16.0015.0180.0024.511.0020.008.70~4.76~100~100.0~SCREW-RX ~BORING BAR ~R ~71E01A0E9CBA9 ~XNMG 090404 FLP 34.50~IS$$782122684387184 ~6308921 0
  A20Q SXQNL 0904 2.00~20.0018.0180.0028.013.0025.008.70~4.76~100~100.0~SCREW-RX ~BORING BAR ~L ~71E01A0E9CBA9 ~XNMG 090404 FLP 38.00~IS$$782122684387184 ~6214369 0
  A20Q SXQNR 0904 2.00~20.0018.0180.0028.013.0025.008.70~4.76~100~100.0~SCREW-RX ~BORING BAR ~R ~71E01A0E9CBA9 ~XNMG 090404 FLP 38.00~IS$$782122684387184 ~6308922 0
  A20Q SXQNL 1105 3.00~20.0018.0180.0028.013.0025.0011.11~5.56~100~100.0~SCREW-RX ~BORING BAR ~L ~71E01A0E9CBA9 ~XNMG 110508 MLP 38.00~IS$$919688921591508 ~6189206 0
  A20Q SXQNR 1105 3.00~20.0018.0180.0028.013.0025.0011.11~5.56~100~100.0~SCREW-RX ~BORING BAR ~R ~71E01A0E9CBA9 ~XNMG 110508 MLP 38.00~IS$$919688921591508 ~6189205 0
