TaeguTec Cutting Tools - Metal Working Tools - Turning -

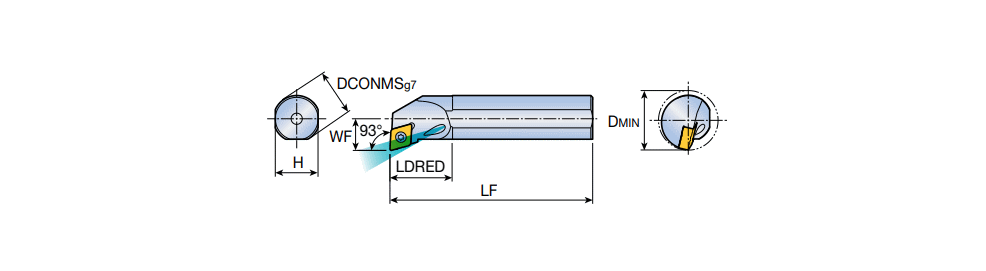

A-SXUNR/L (RHINO-X) : Screw type RHINOXTURN boring bars with internal coolant, 93° approach angle & 70° corner angle XNMG inserts

Right-hand shown

Designation	DCONMS	H	LF	LDRED	WF	DMIN	IC	S	Kr	KAPR	CL	Tool typ	R/L	ClssID	MIID	LTA	IIC	IIC_2	GICAT	GIREM	giic	GICODE
A25R SXUNL 1105	25.00	23.0	200.00	33.4	17.00	32.00	11.11~	5.56~	15~	93.0~	SCREW-RX ~	BORING BAR ~	L ~	71E01A0E9CBA9 ~	XNMG 110508 MLP	43.40~	IS$$23154203-976 ~	IS$$919688921591508 ~	6310851		0
A25R SXUNR 1105	25.00	23.0	200.00	33.4	17.00	32.00	11.11~	5.56~	15~	93.0~	SCREW-RX ~	BORING BAR ~	R ~	71E01A0E9CBA9 ~	XNMG 110508 MLP	43.40~	IS$$231542052801000 ~	IS$$919688921591508 ~	6310850		0
